Made to order
CPU Cooling
SRV-1700-2U3CA

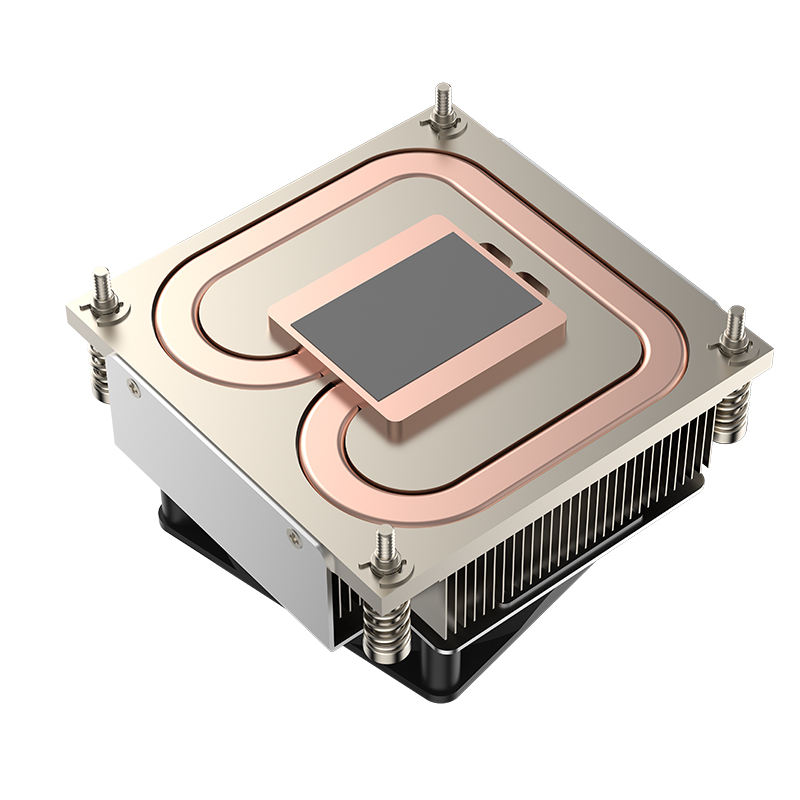

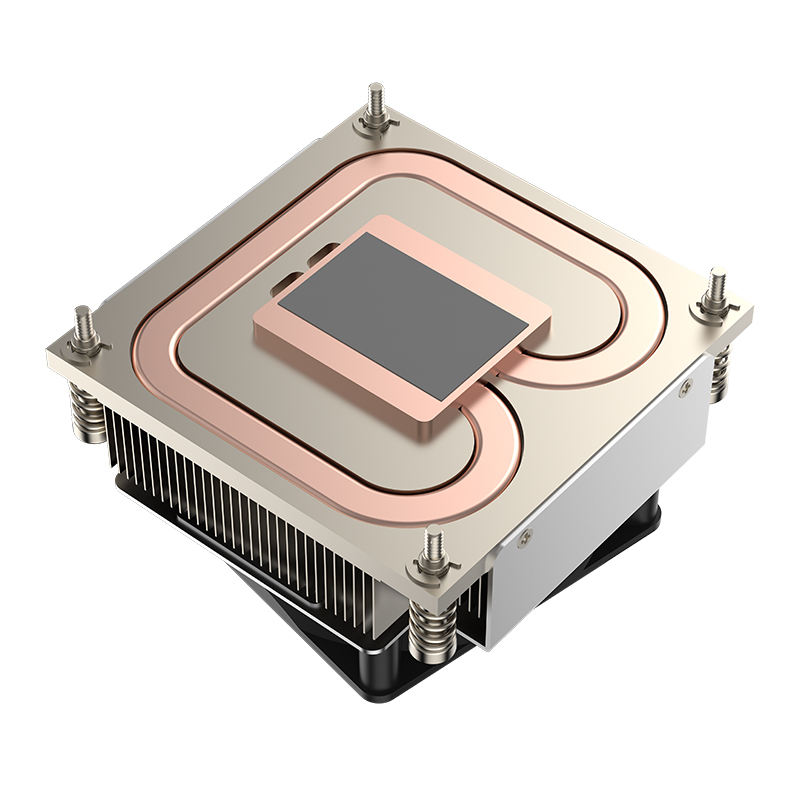

COOLSERVER LGA1700 2U3CA 12th Generation CPU Server Radiator Pure Copper Shovel Teeth Heat Sink Temperature Control Fan
CPU PlatformLGA1700
Power InterfacePWM
Noise37 dBA
Power (TDP)150 W
Air Volume32.49 CFM
COOLSERVER LGA1700 2U3CA 12th Generation CPU Server Radiator Pure Copper Shovel Teeth Heat Sink Temperature Control Fan. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-2U3CA |
| Short Description | COOLSERVER LGA1700 2U3CA 12th Generation CPU Server Radiator Pure Copper Shovel Teeth Heat Sink Temperature Control Fan |
| Description | COOLSERVER LGA1700 2U3CA 12th Generation CPU Server Radiator Pure Copper Shovel Teeth Heat Sink Temperature Control Fan. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
Thermal and Mechanical
| Heat Pipe Count | 1 |
| Heatsink Material | Copper & Aluminum |
| Base Material | Copper base |
| Cooler Dimensions | 90 × 88 × 48 mm |
| Weight | 0.400 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 70x70x20mm |
| Fan Speed | 4300rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
