Made to order
CPU Cooling
SRV-1700-2UR67

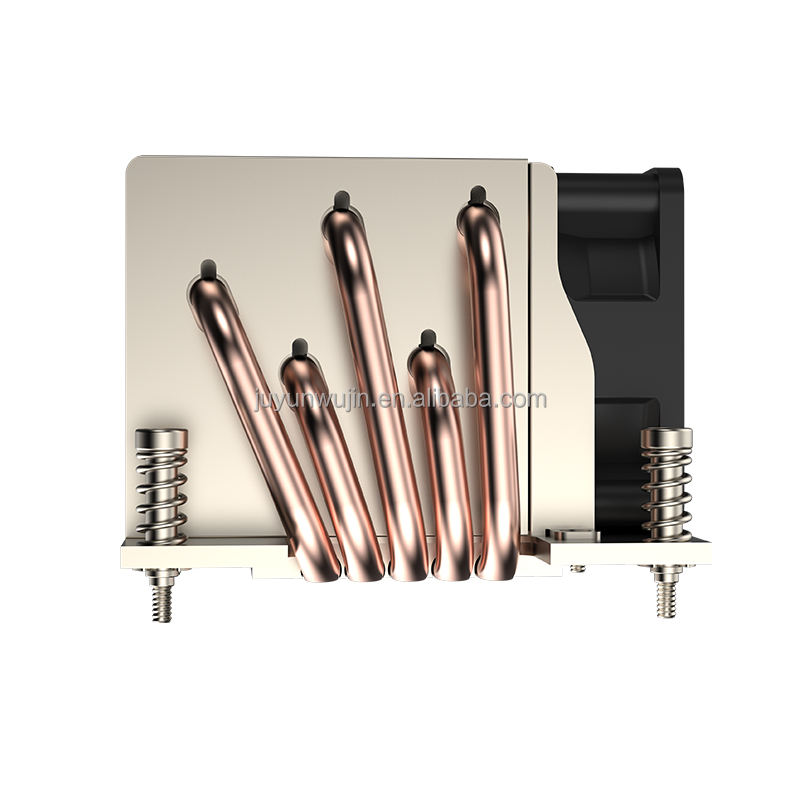

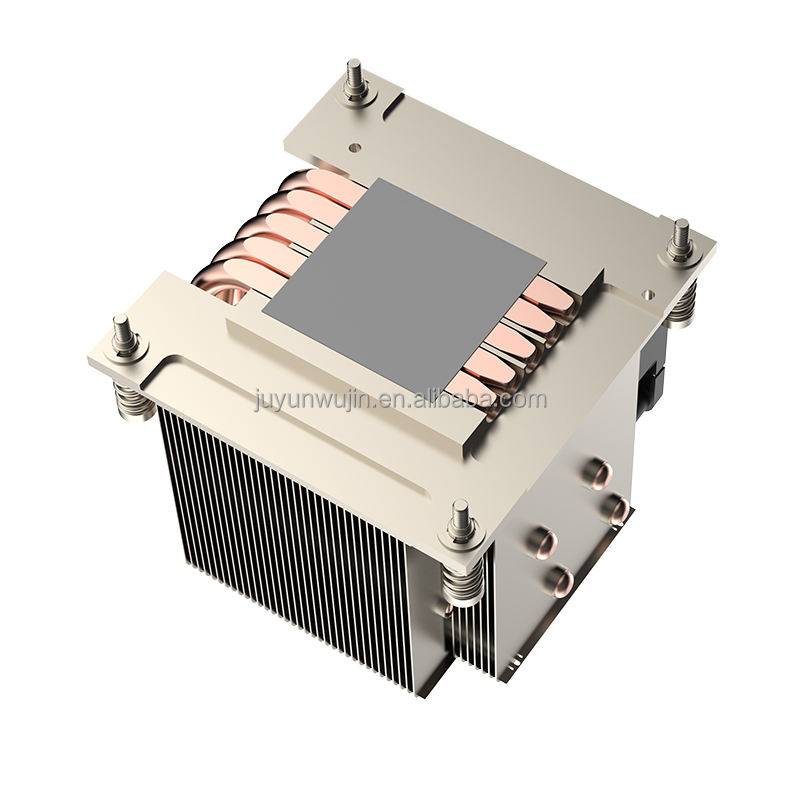

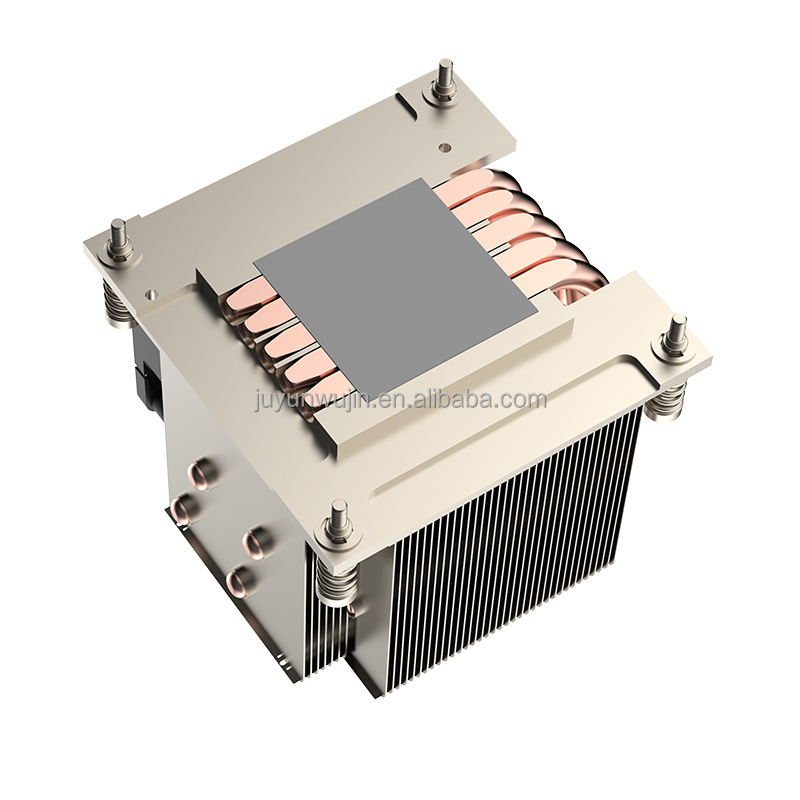

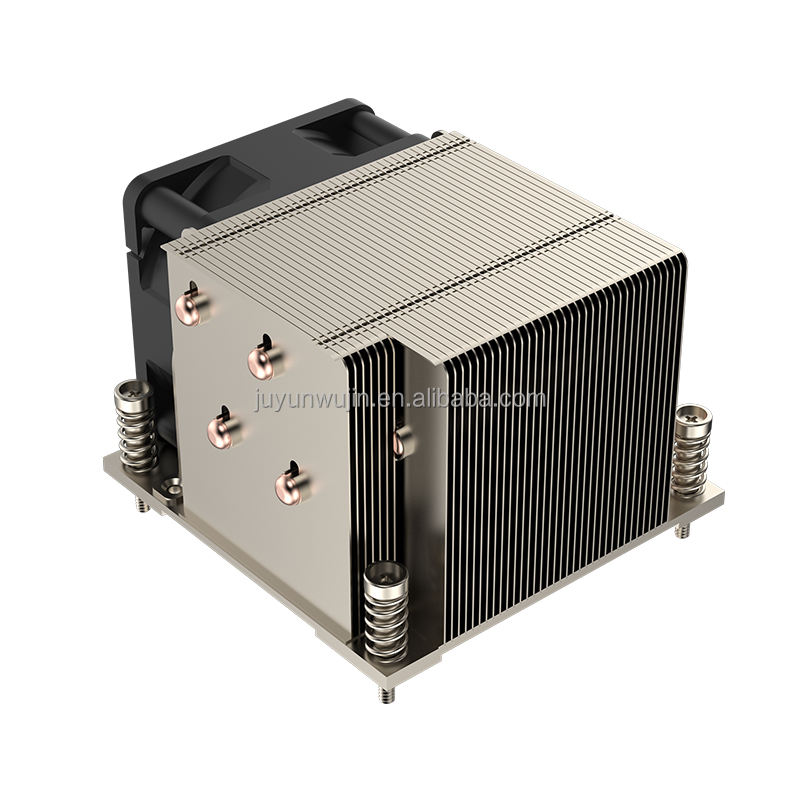

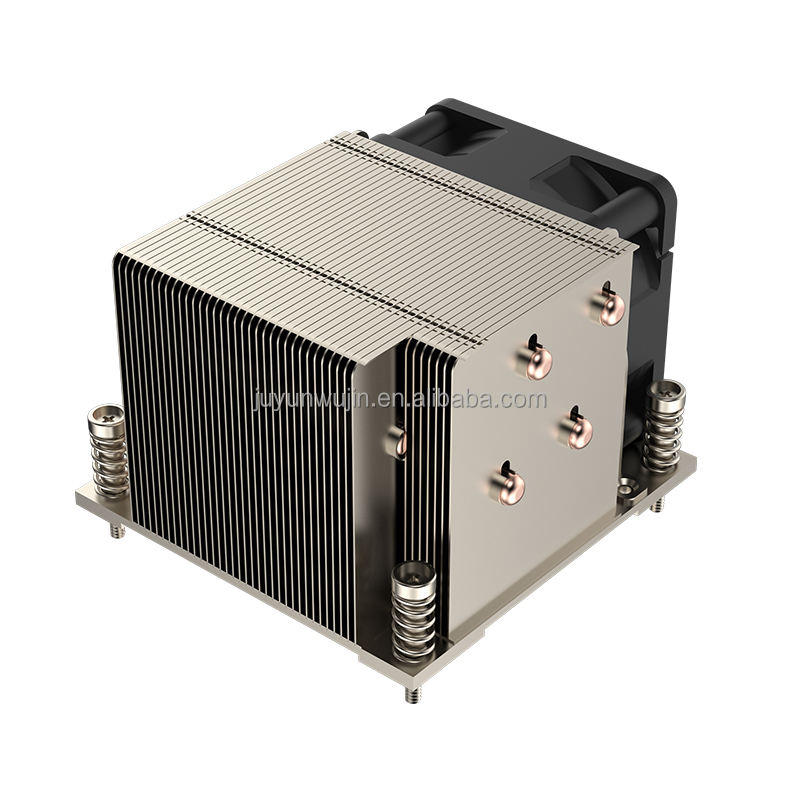

COOLSERVER Brand-New LGA1700 12th & 13th Generation 5 Heat Pipe High-Power Server Radiator Air Cooler CPU Cooling Fans & Cooling
CPU PlatformLGA1700
Power InterfacePWM
Noise52.5 dBA
Power (TDP)240 W
Air Volume47.2 CFM
COOLSERVER Brand-New LGA1700 12th & 13th Generation 5 Heat Pipe High-Power Server Radiator Air Cooler CPU Cooling Fans & Cooling. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-2UR67 |
| Short Description | COOLSERVER Brand-New LGA1700 12th & 13th Generation 5 Heat Pipe High-Power Server Radiator Air Cooler CPU Cooling Fans & Cooling |
| Description | COOLSERVER Brand-New LGA1700 12th & 13th Generation 5 Heat Pipe High-Power Server Radiator Air Cooler CPU Cooling Fans & Cooling. Supplier detail-page values captured from Alibaba. |
| Testing | Testing |
CPU Compatibility
| CPU Manufacturer | Intel |
| Compatible Chassis Height | 2U |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Base Material | Contact Engineering |
| Cooler Dimensions | 88 x 90 x 67 mm |
| Weight | 0.442 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60X60X25MM |
| Fan Speed | 8000RPM |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
