Made to order
CPU Cooling
SRV-1700-4UR25

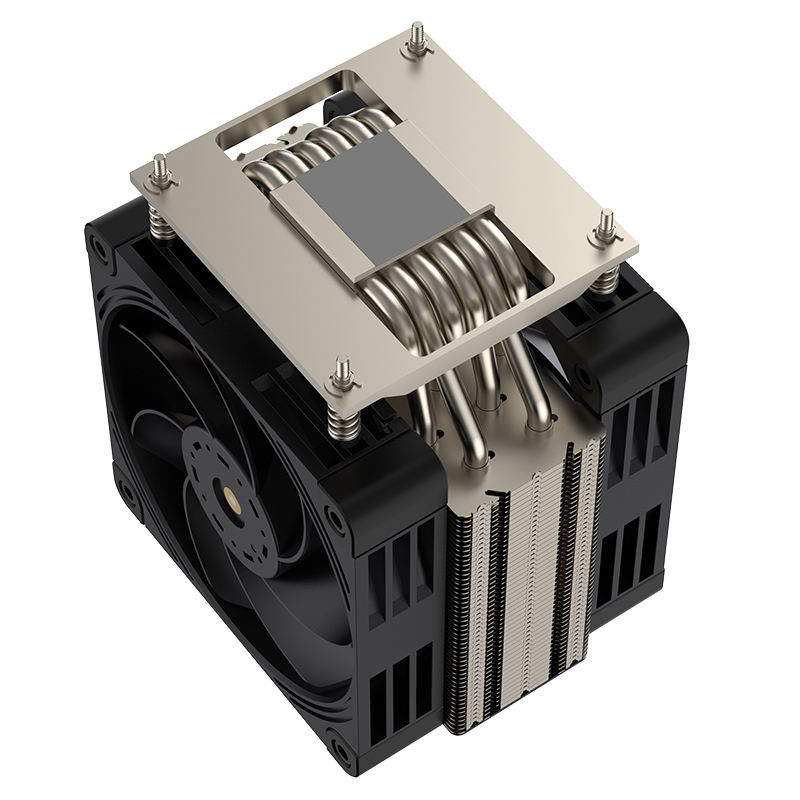

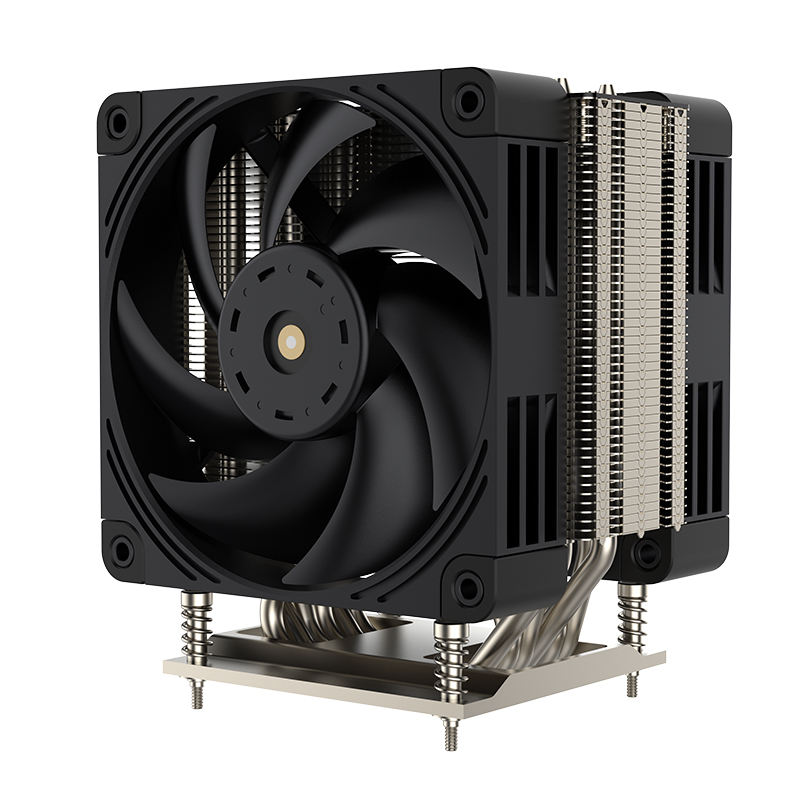

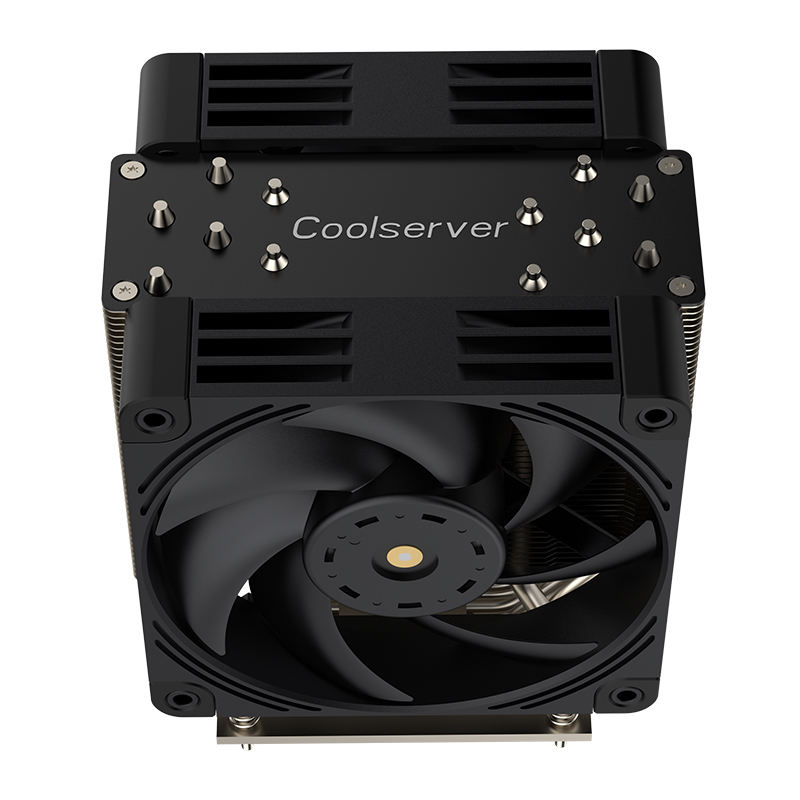

COOLSERVER LGA1700 4UR25 12th Generation CPU Server Radiator Dual Fan 6 Heat Pipe Silent 13900K New Computer Processor TDP 255W
CPU PlatformLGA1700
Power InterfacePWM
Noise36 dBA
Power (TDP)255 W
Air Volume72.68 CFM
COOLSERVER LGA1700 4UR25 12th Generation CPU Server Radiator Dual Fan 6 Heat Pipe Silent 13900K New Computer Processor TDP 255W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-4UR25 |
| Short Description | COOLSERVER LGA1700 4UR25 12th Generation CPU Server Radiator Dual Fan 6 Heat Pipe Silent 13900K New Computer Processor TDP 255W |
| Description | COOLSERVER LGA1700 4UR25 12th Generation CPU Server Radiator Dual Fan 6 Heat Pipe Silent 13900K New Computer Processor TDP 255W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
Thermal and Mechanical
| Heat Pipe Count | 6 |
| Heatsink Material | Copper & Aluminum |
| Base Material | Copper base |
| Cooler Dimensions | 120 x 108 x 155 mm |
| Weight | 0.768 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 120x120x28mm |
| Fan Speed | 2200rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
