Made to order
CPU Cooling
SRV-1700-4UR19

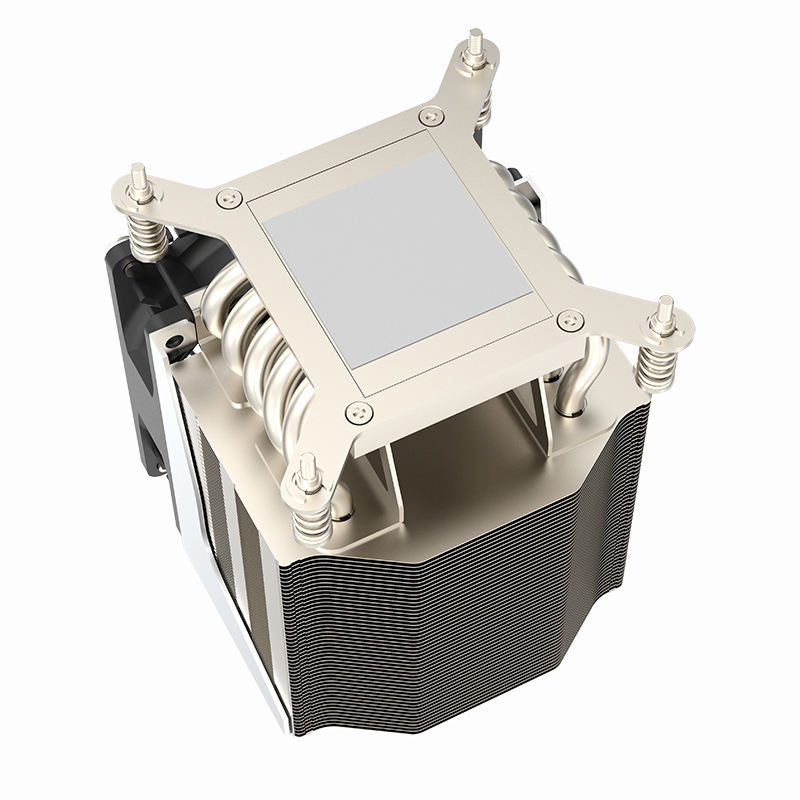

COOLSERVER New LGA1700 4UR19 Platform 4U Server CPU Radiator 5 Heat Pipe Desktop Host Silent Temperature Control Fan
CPU PlatformLGA1700
Noise40 dBA
Power (TDP)210 W
Air Volume61.46 CFM
COOLSERVER New LGA1700 4UR19 Platform 4U Server CPU Radiator 5 Heat Pipe Desktop Host Silent Temperature Control Fan. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-4UR19 |
| Short Description | COOLSERVER New LGA1700 4UR19 Platform 4U Server CPU Radiator 5 Heat Pipe Desktop Host Silent Temperature Control Fan |
| Description | COOLSERVER New LGA1700 4UR19 Platform 4U Server CPU Radiator 5 Heat Pipe Desktop Host Silent Temperature Control Fan. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Weight | 0.507 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 92x92x25mm |
| Fan Speed | 3800rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
