Made to order
CPU Cooling
SRV-1700-2UR65

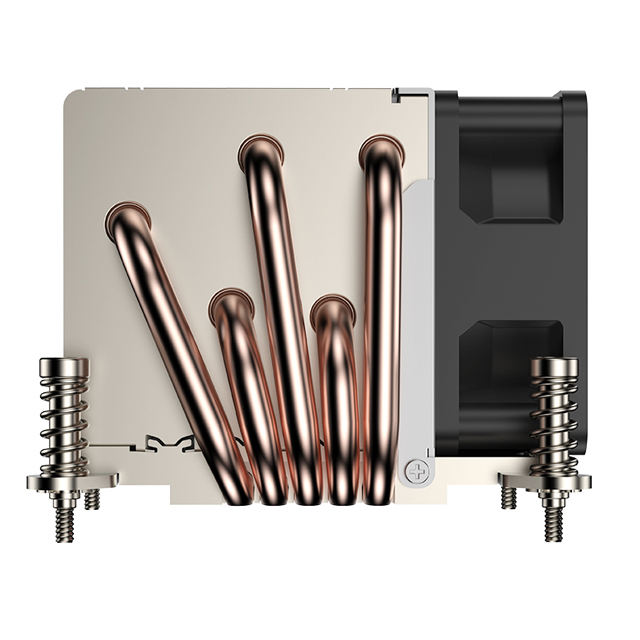

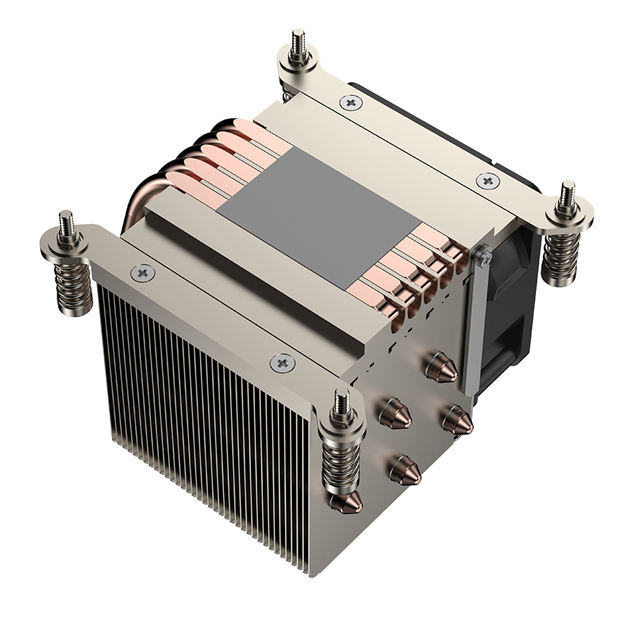

COOLSERVER 1700-2UR65 LGA1700 CPU Type 5 Heat Pipe High-Power Copper Aluminum Server Radiator Air Cooler for 2U Sever TDP 220W
CPU PlatformLGA1700
Power InterfacePWM
Noise52.5 dBA
Power (TDP)220 W
Air Volume47.2 CFM
COOLSERVER 1700-2UR65 LGA1700 CPU Type 5 Heat Pipe High-Power Copper Aluminum Server Radiator Air Cooler for 2U Sever TDP 220W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-2UR65 |
| Short Description | COOLSERVER 1700-2UR65 LGA1700 CPU Type 5 Heat Pipe High-Power Copper Aluminum Server Radiator Air Cooler for 2U Sever TDP 220W |
| Description | COOLSERVER 1700-2UR65 LGA1700 CPU Type 5 Heat Pipe High-Power Copper Aluminum Server Radiator Air Cooler for 2U Sever TDP 220W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA1700(Square mother board) |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Base Material | Contact Engineering |
| Cooler Dimensions | 90 x 90.5 x 67.7 mm |
| Weight | 0.442 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60x60x25mm |
| Fan Speed | PWM 2600-8000RPM |
| Connector | 4pin PWM |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
