Made to order
CPU Cooling
SRV-1700-4UR26

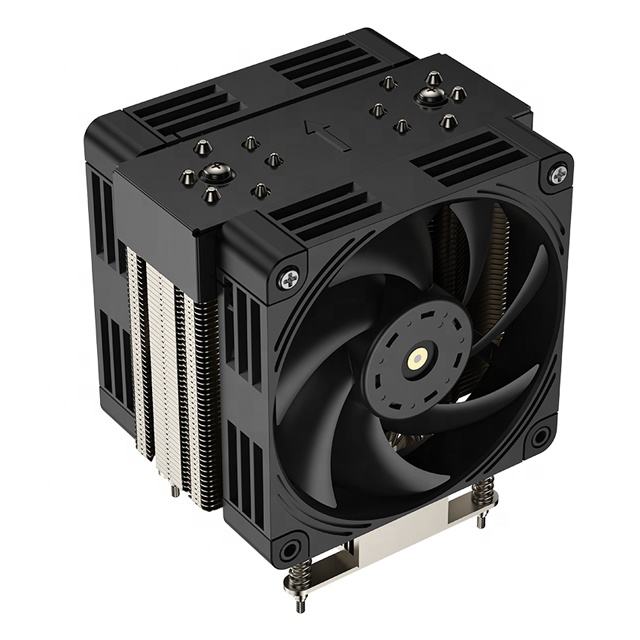

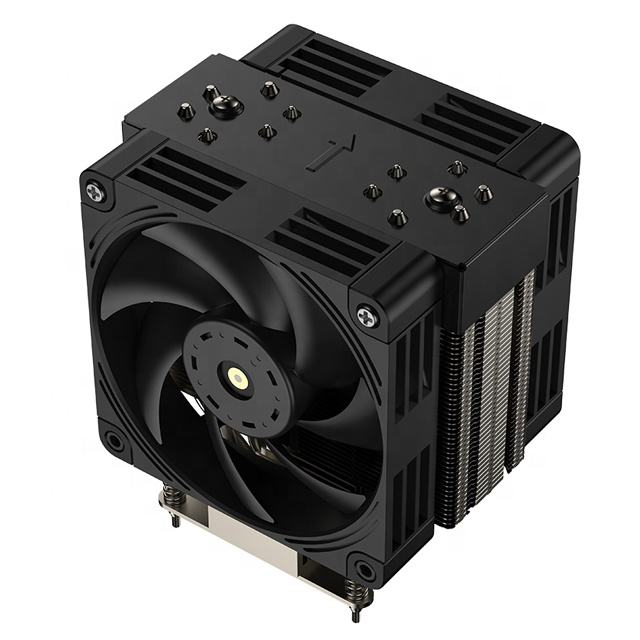

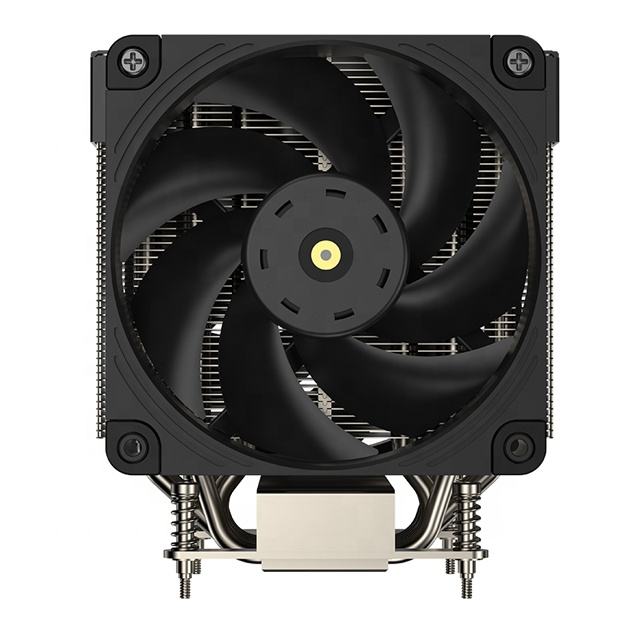

COOLSERVER CS-1700-4UR26 LGA1700 6 Heat Pipes High-Power Copper Aluminum Two Ball Bearing 280W TDP PWM Fan Server Radiator Air
CPU PlatformLGA1700
Power InterfacePWM
Noise36 dBA
Power (TDP)280 W
Air Volume72.68 CFM
COOLSERVER CS-1700-4UR26 LGA1700 6 Heat Pipes High-Power Copper Aluminum Two Ball Bearing 280W TDP PWM Fan Server Radiator Air. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-4UR26 |
| Short Description | COOLSERVER CS-1700-4UR26 LGA1700 6 Heat Pipes High-Power Copper Aluminum Two Ball Bearing 280W TDP PWM Fan Server Radiator Air |
| Description | COOLSERVER CS-1700-4UR26 LGA1700 6 Heat Pipes High-Power Copper Aluminum Two Ball Bearing 280W TDP PWM Fan Server Radiator Air. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA1700 |
Thermal and Mechanical
| Heat Pipe Count | 6 |
| Heatsink Material | Copper & Aluminum |
| Base Material | Copper base |
| Cooler Dimensions | 130 x 106 x 151 mm |
| Weight | 0.442 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | Other mm |
| Fan Speed | PWM 1000-2200RPM |
| Connector | 4pin PWM |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
