Made to order
CPU Cooling
SRV-AM5-4UR26-10

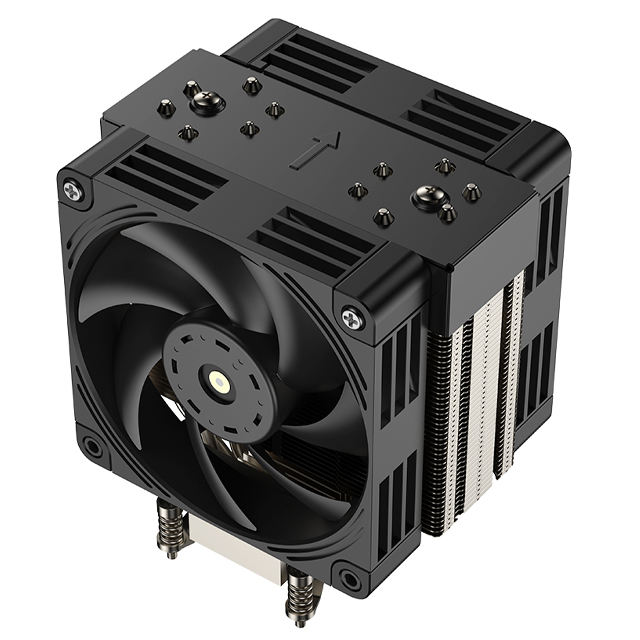

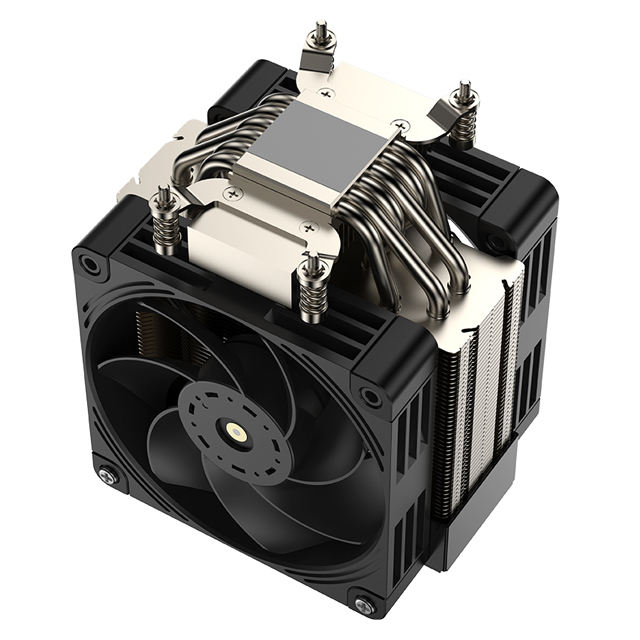

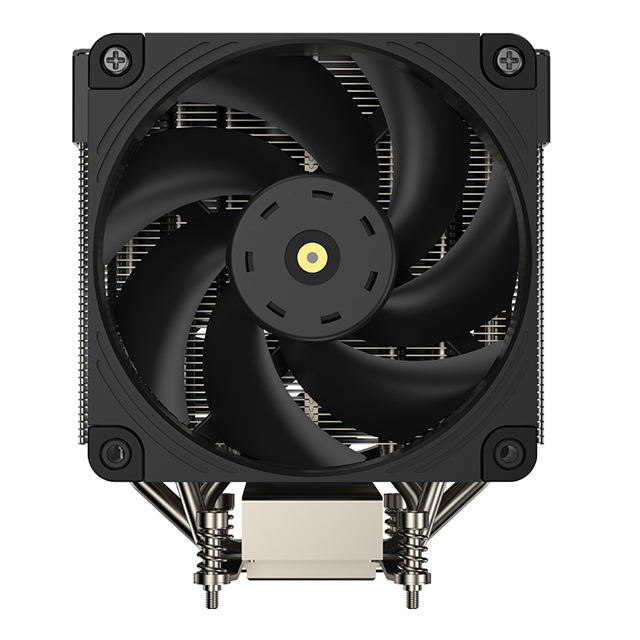

COOLSERVER CS-AM5-4UR26 6 Heat Pipe Copper Aluminum Air Cooling for AM5 CPU Radiator for Computer Case TDP 220W Ball Bearing PWM
CPU PlatformAM5
Power InterfacePWM
Noise36 dBA
Power (TDP)220 W
Air Volume72.68 CFM
COOLSERVER CS-AM5-4UR26 6 Heat Pipe Copper Aluminum Air Cooling for AM5 CPU Radiator for Computer Case TDP 220W Ball Bearing PWM. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-AM5-4UR26-10 |
| Short Description | COOLSERVER CS-AM5-4UR26 6 Heat Pipe Copper Aluminum Air Cooling for AM5 CPU Radiator for Computer Case TDP 220W Ball Bearing PWM |
| Description | COOLSERVER CS-AM5-4UR26 6 Heat Pipe Copper Aluminum Air Cooling for AM5 CPU Radiator for Computer Case TDP 220W Ball Bearing PWM. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
| CPU Generation / Platform | AMD AM5 |
Thermal and Mechanical
| Heat Pipe Count | 6 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 130 × 106 × 151 mm |
| Weight | 0.389 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | Other mm |
| Fan Speed | PWM 1000-2200RPM |
| Connector | 4pin PWM |
| Bearing Type | Ball Bearing |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
