Made to order
CPU Cooling
SRV-AM5-4UR23-T

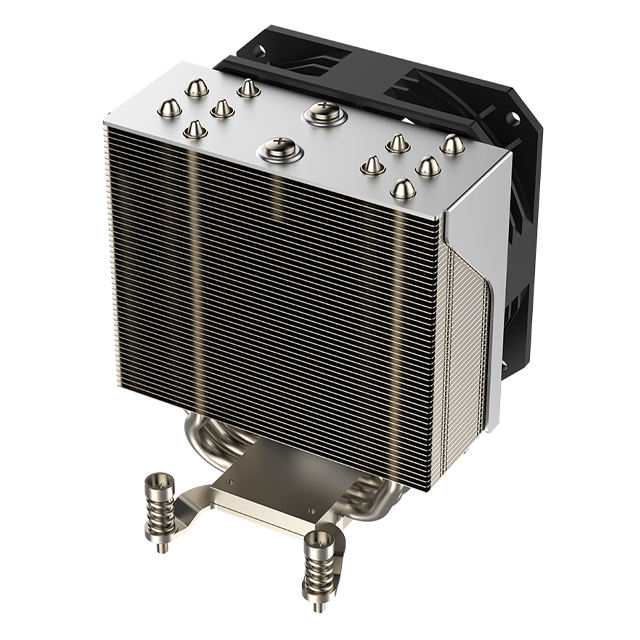

COOLSERVER CS-AM5-4UR23-T Desktop Computer Server AM5 5 Heat Pipe Copper CPU Radiator Cooler Fan Ball Bearing TDP 210W Case
CPU PlatformAM5
Power InterfacePWM
Noise45 dBA
Power (TDP)210 W
Air Volume128 CFM
COOLSERVER CS-AM5-4UR23-T Desktop Computer Server AM5 5 Heat Pipe Copper CPU Radiator Cooler Fan Ball Bearing TDP 210W Case. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-AM5-4UR23-T |
| Short Description | COOLSERVER CS-AM5-4UR23-T Desktop Computer Server AM5 5 Heat Pipe Copper CPU Radiator Cooler Fan Ball Bearing TDP 210W Case |
| Description | COOLSERVER CS-AM5-4UR23-T Desktop Computer Server AM5 5 Heat Pipe Copper CPU Radiator Cooler Fan Ball Bearing TDP 210W Case. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
| CPU Generation / Platform | AMD AM5 |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper |
| Cooler Dimensions | 107.6 × 90 × 126.2 mm |
| Weight | 0.389 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | Other mm |
| Fan Speed | PWM 2000-5000RPM |
| Connector | 4pin PWM |
| Bearing Type | Ball Bearing |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
