Made to order
CPU Cooling
SRV-2011-4UR20-N

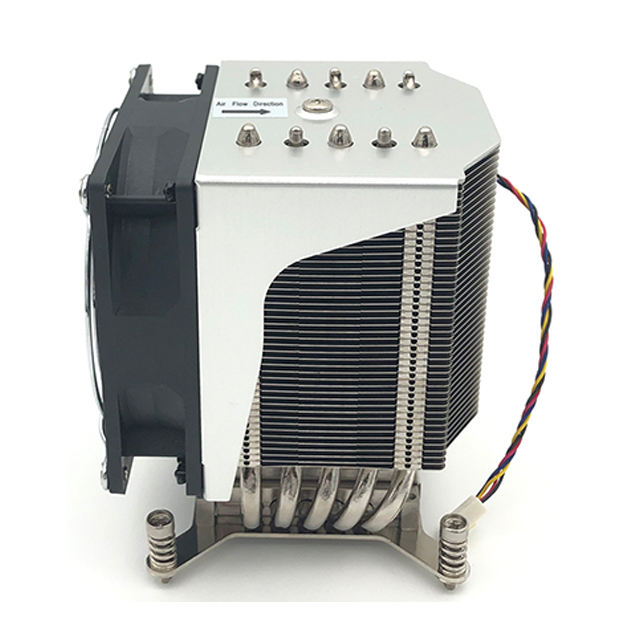

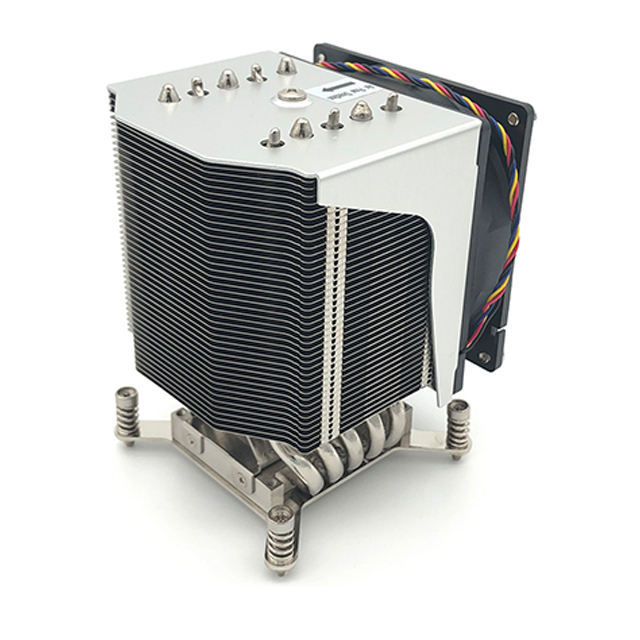

COOLSERVER LGA2011 4UR20-N CPU Cooler Silent Two Ball Bearing PWM Fan 5 Heat Pipes Copper Aluminum Computer Case TDP 220W DC 12V
CPU PlatformLGA2011
Power InterfacePWM
Noise44 dBA
Power (TDP)180 W
Air Volume61.46 CFM
COOLSERVER LGA2011 4UR20-N CPU Cooler Silent Two Ball Bearing PWM Fan 5 Heat Pipes Copper Aluminum Computer Case TDP 220W DC 12V. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-2011-4UR20-N |
| Short Description | COOLSERVER LGA2011 4UR20-N CPU Cooler Silent Two Ball Bearing PWM Fan 5 Heat Pipes Copper Aluminum Computer Case TDP 220W DC 12V |
| Description | COOLSERVER LGA2011 4UR20-N CPU Cooler Silent Two Ball Bearing PWM Fan 5 Heat Pipes Copper Aluminum Computer Case TDP 220W DC 12V. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA2011 (Rectangle motherboard) |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 105 × 92.5 × 125.8 mm |
| Weight | 0.754 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | Other mm |
| Fan Speed | PWM 1900-3800RPM |
| Connector | 4pin PWM |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 100000 Hrs hours |
