Made to order
CPU Cooling
SRV-2011-4UR20

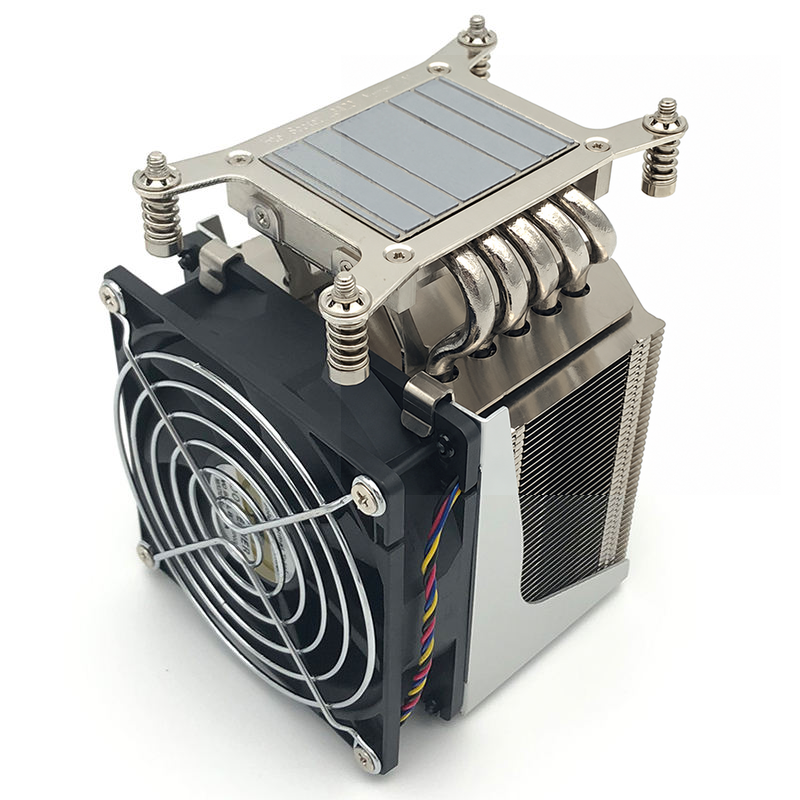

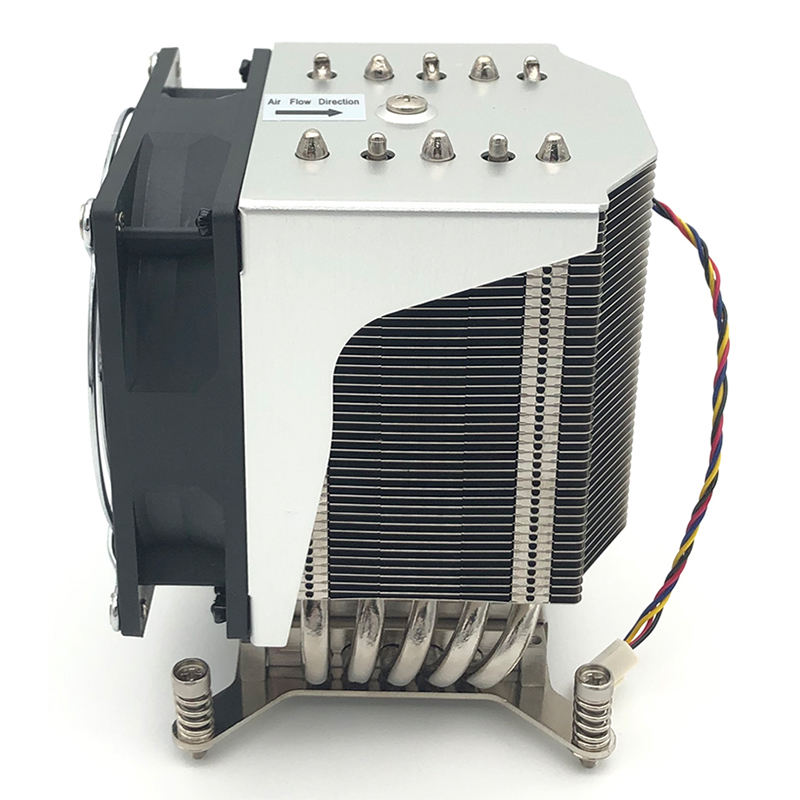

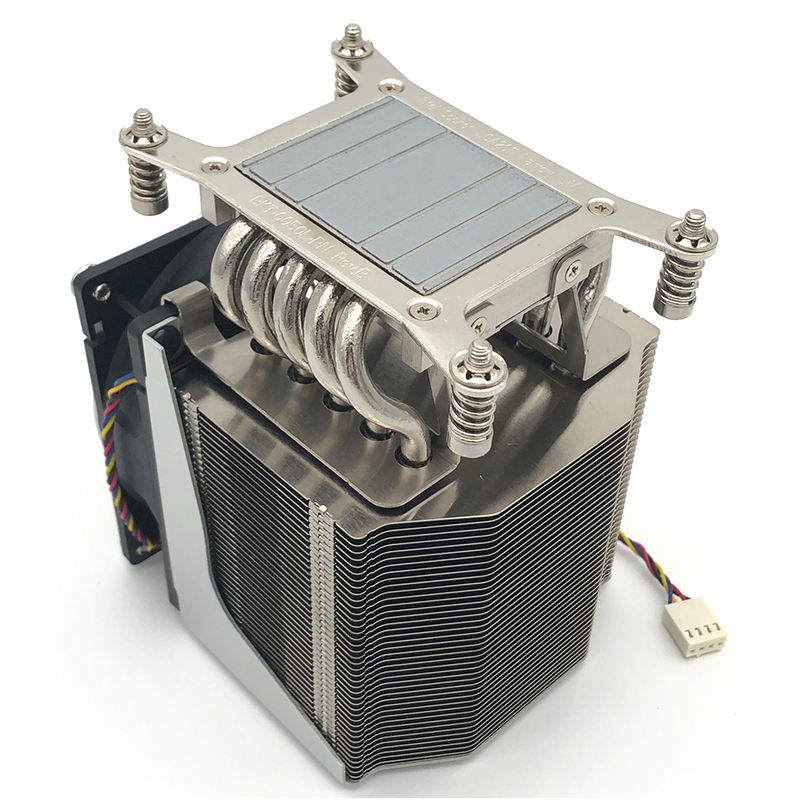

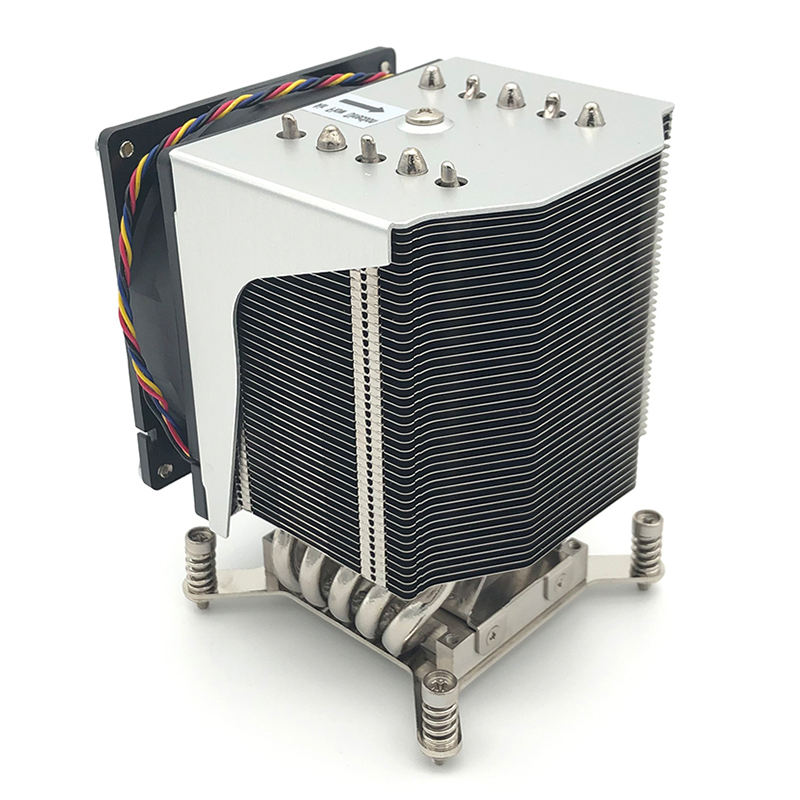

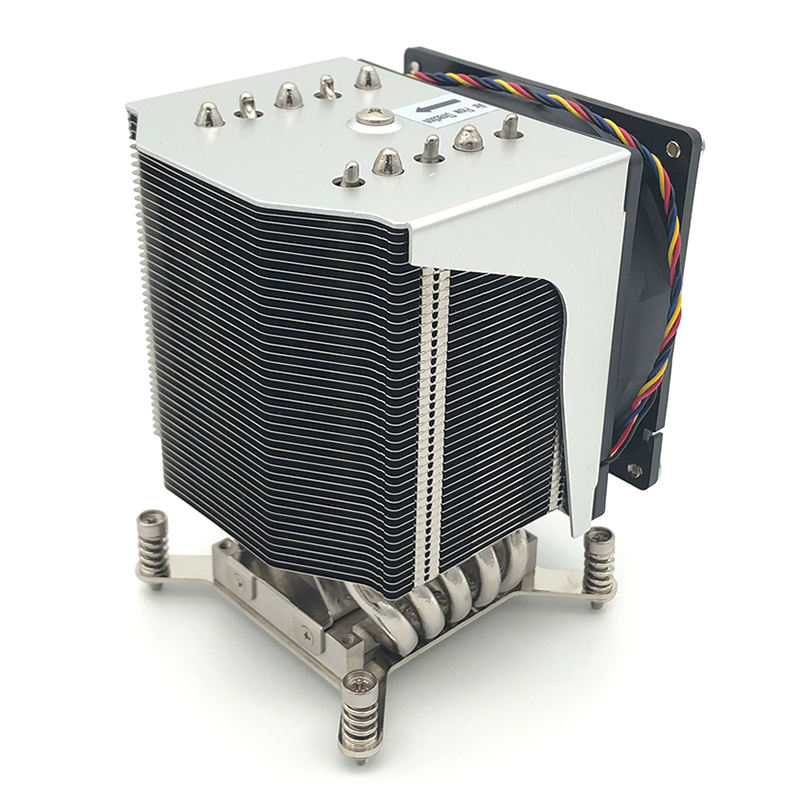

COOLSERVER LGA 2011 4U R20 Server CPU Radiator with 5 Heat Pipes Silent Cooling Fan CPU Cooler for Computer Cases TDP 165W
CPU PlatformLGA2011
Noise40 dBA
Power (TDP)165 W
Air Volume61.46 CFM
COOLSERVER LGA 2011 4U R20 Server CPU Radiator with 5 Heat Pipes Silent Cooling Fan CPU Cooler for Computer Cases TDP 165W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-2011-4UR20 |
| Short Description | COOLSERVER LGA 2011 4U R20 Server CPU Radiator with 5 Heat Pipes Silent Cooling Fan CPU Cooler for Computer Cases TDP 165W |
| Description | COOLSERVER LGA 2011 4U R20 Server CPU Radiator with 5 Heat Pipes Silent Cooling Fan CPU Cooler for Computer Cases TDP 165W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA2011 (rectangular motherboard) |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 105 × 92.5 × 125.8 mm |
| Weight | 0.8 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 92x92x25mm |
| Fan Speed | 3800rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
