Made to order
CPU Cooling
SRV-2011-4UR19

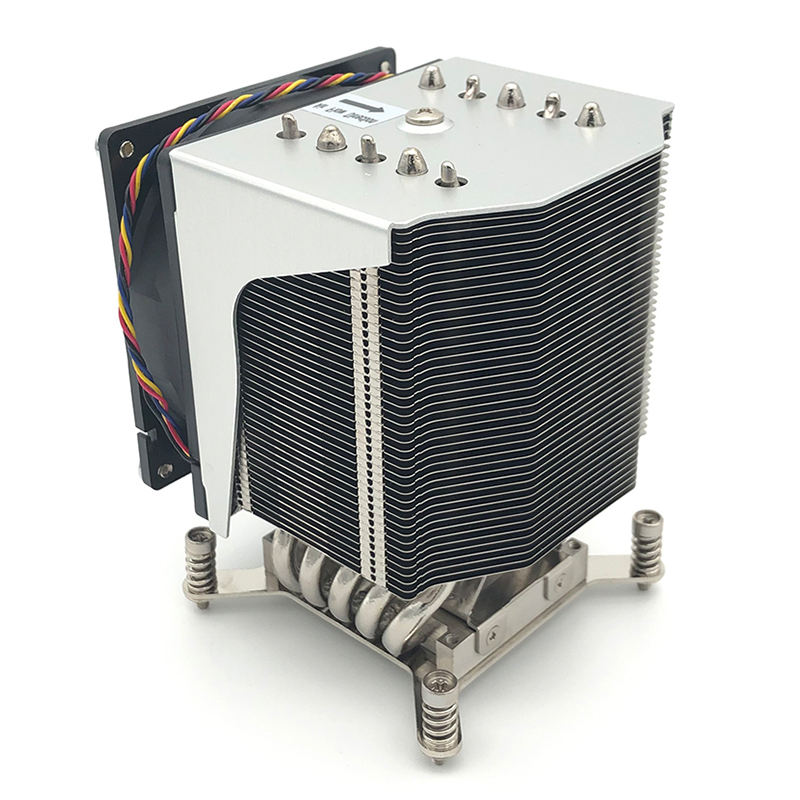

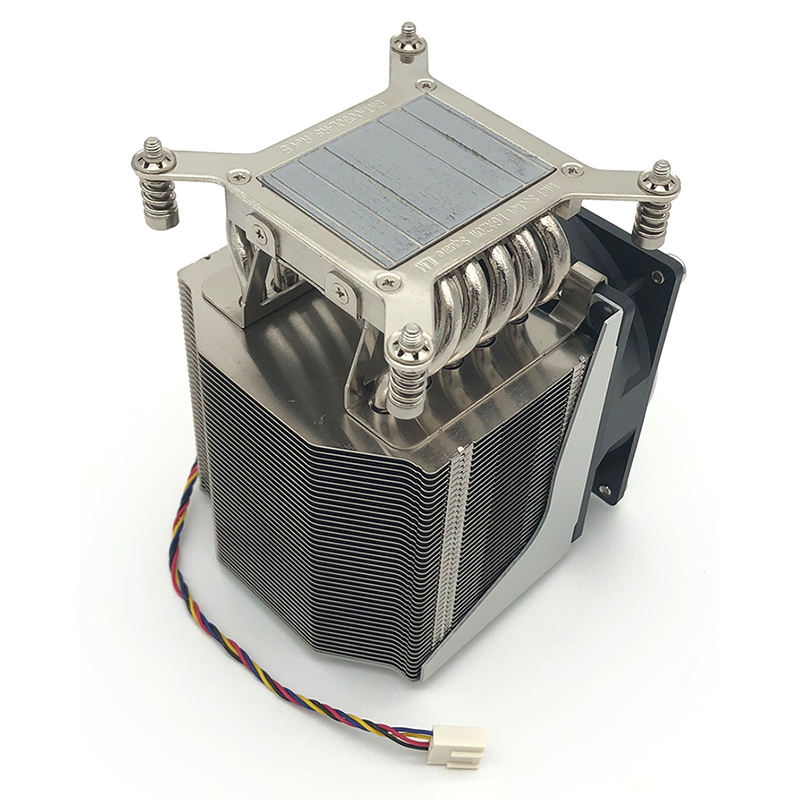

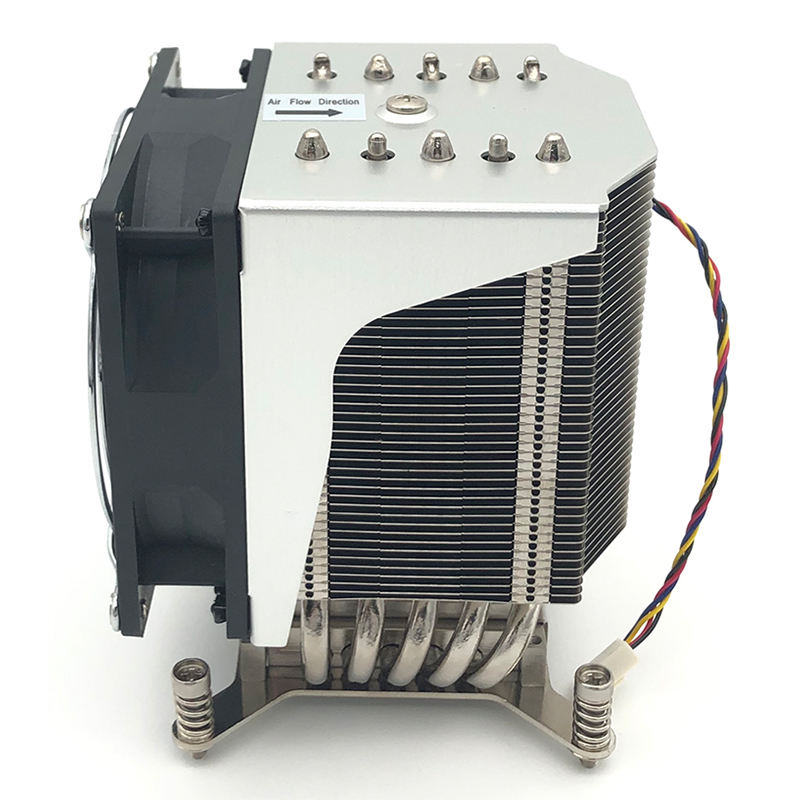

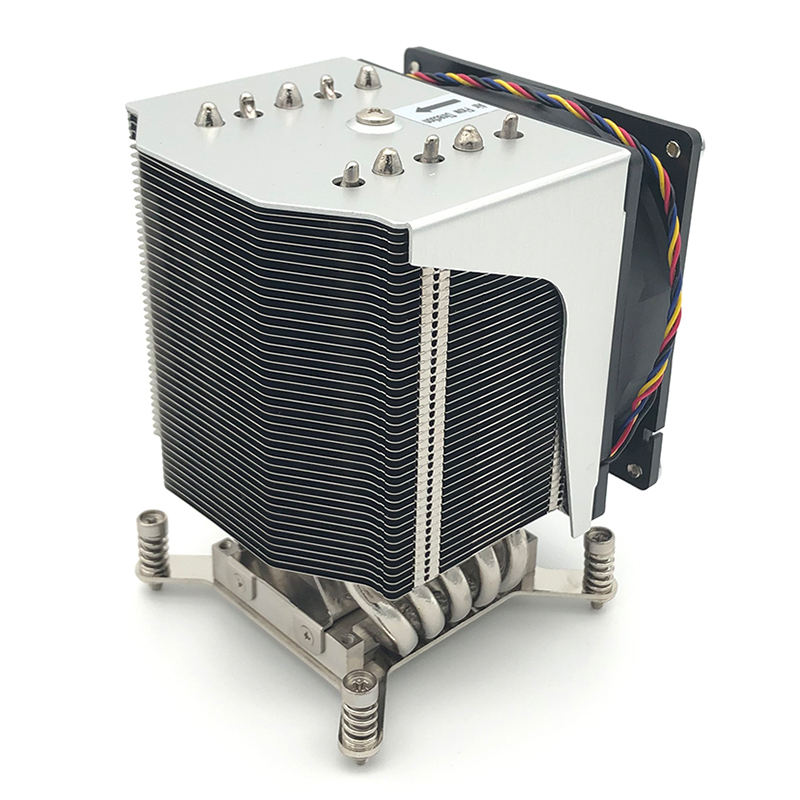

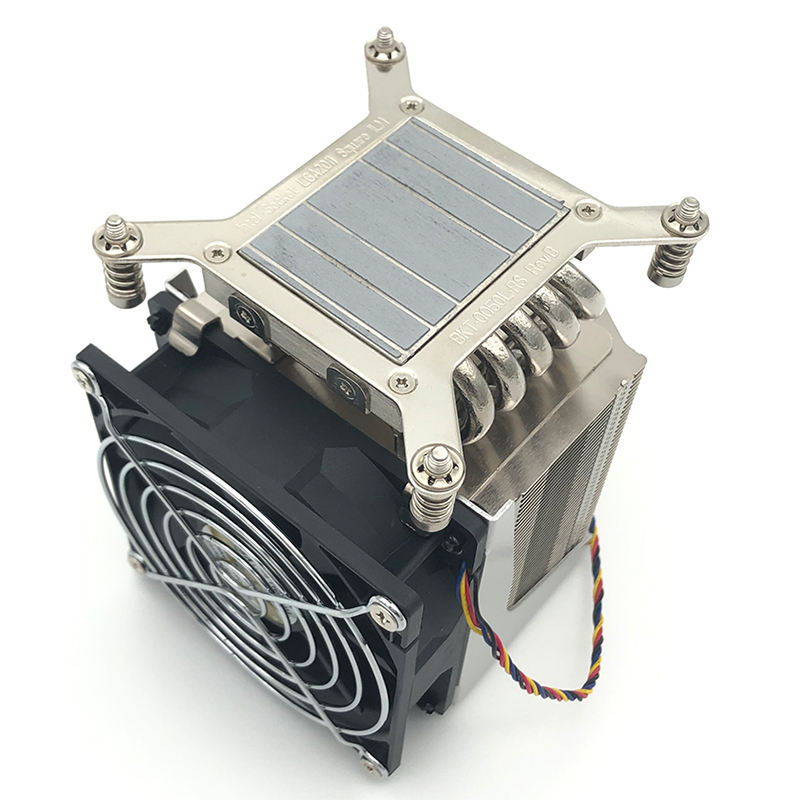

CoolServer LGA 2011 4U R19 Server Square CPU Radiator CPU Air Cooler 5 Heat Pipes Silent Cooling for Computer Case TDP 220W
CPU PlatformLGA2011
Noise40 dBA
Power (TDP)165 W
Air Volume61.46 CFM
CoolServer LGA 2011 4U R19 Server Square CPU Radiator CPU Air Cooler 5 Heat Pipes Silent Cooling for Computer Case TDP 220W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-2011-4UR19 |
| Short Description | CoolServer LGA 2011 4U R19 Server Square CPU Radiator CPU Air Cooler 5 Heat Pipes Silent Cooling for Computer Case TDP 220W |
| Description | CoolServer LGA 2011 4U R19 Server Square CPU Radiator CPU Air Cooler 5 Heat Pipes Silent Cooling for Computer Case TDP 220W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA2011 (square motherboard) |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 105 × 92.5 × 125.8 mm |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 92x92x25mm |
| Fan Speed | 3800rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
