Made to order
CPU Cooling
SRV-SP5-4UM98

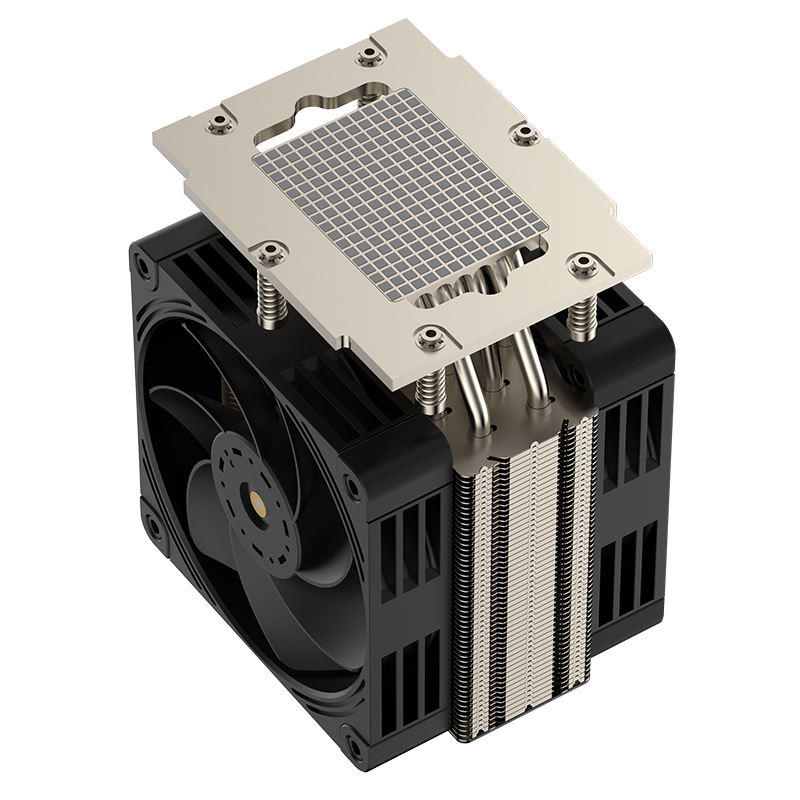

COOLSERVER SP5 4UM98 CPU Cooler Dual Fan 6 Heat Pipes Silent Air Cooling PWM Fan Speed Control for 4U Server TDP 400W
CPU PlatformSP5
Noise32 dBA
Air Volume86 CFM
COOLSERVER SP5 4UM98 CPU Cooler Dual Fan 6 Heat Pipes Silent Air Cooling PWM Fan Speed Control for 4U Server TDP 400W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-SP5-4UM98 |
| Short Description | COOLSERVER SP5 4UM98 CPU Cooler Dual Fan 6 Heat Pipes Silent Air Cooling PWM Fan Speed Control for 4U Server TDP 400W |
| Description | COOLSERVER SP5 4UM98 CPU Cooler Dual Fan 6 Heat Pipes Silent Air Cooling PWM Fan Speed Control for 4U Server TDP 400W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
| CPU Generation / Platform | AMD SP5 |
Thermal and Mechanical
| Heat Pipe Count | 6 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 130 × 100 × 154 mm |
| Weight | 1.444 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 120x120x28mm |
| Fan Speed | 1000-2200RPM |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
