Made to order
CPU Cooling
SRV-SP5-2US22

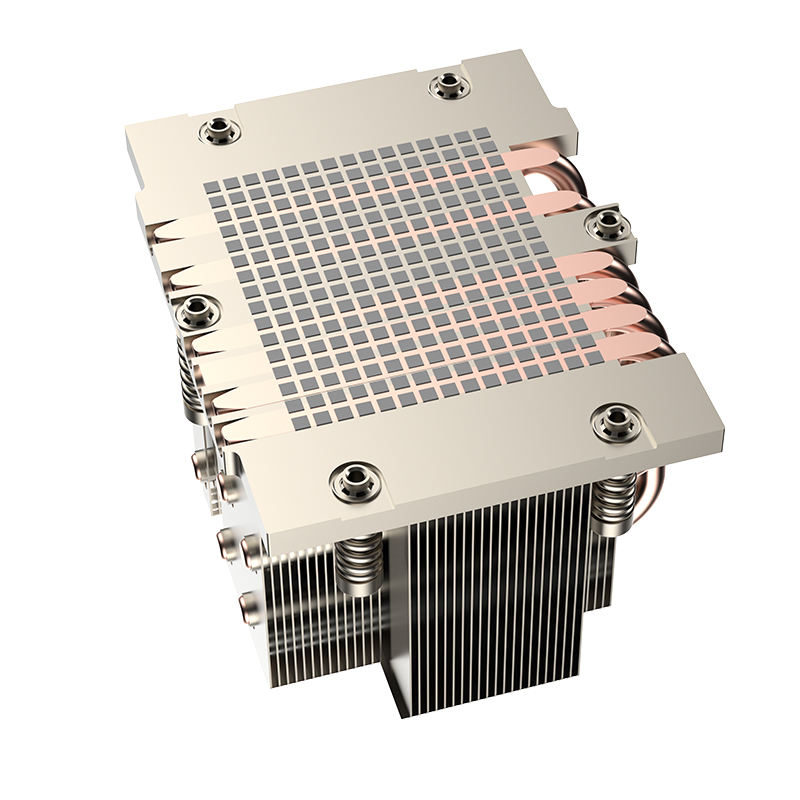

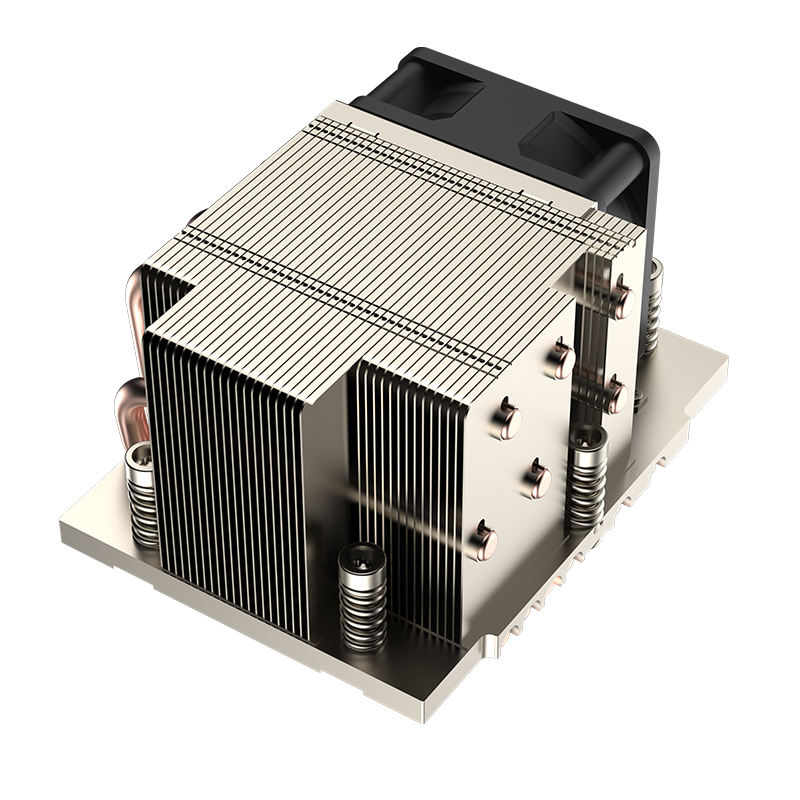

Multi-Platform CPU Radiator 6 Heat Pipes Support SP5 AMD Silent Cooling Fan Copper 2U Server Heatsink CPU Air Cooler TDP 380W
CPU PlatformSP5
Power InterfacePWM
Noise52.5 dBA
Power (TDP)380 W
Air Volume47.2 CFM
Multi-Platform CPU Radiator 6 Heat Pipes Support SP5 AMD Silent Cooling Fan Copper 2U Server Heatsink CPU Air Cooler TDP 380W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-SP5-2US22 |
| Short Description | Multi-Platform CPU Radiator 6 Heat Pipes Support SP5 AMD Silent Cooling Fan Copper 2U Server Heatsink CPU Air Cooler TDP 380W |
| Description | Multi-Platform CPU Radiator 6 Heat Pipes Support SP5 AMD Silent Cooling Fan Copper 2U Server Heatsink CPU Air Cooler TDP 380W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
Thermal and Mechanical
| Heat Pipe Count | 6 |
| Heatsink Material | Copper & Aluminum |
| Base Material | Copper base |
| Cooler Dimensions | 118 × 92.4 × 66.3 mm |
| Weight | 1.0 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60X60X25MM |
| Fan Speed | 8000rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Fan Life | 50000 Hrs hours |
