Made to order
CPU Cooling
SRV-AMD SP3-2UP23

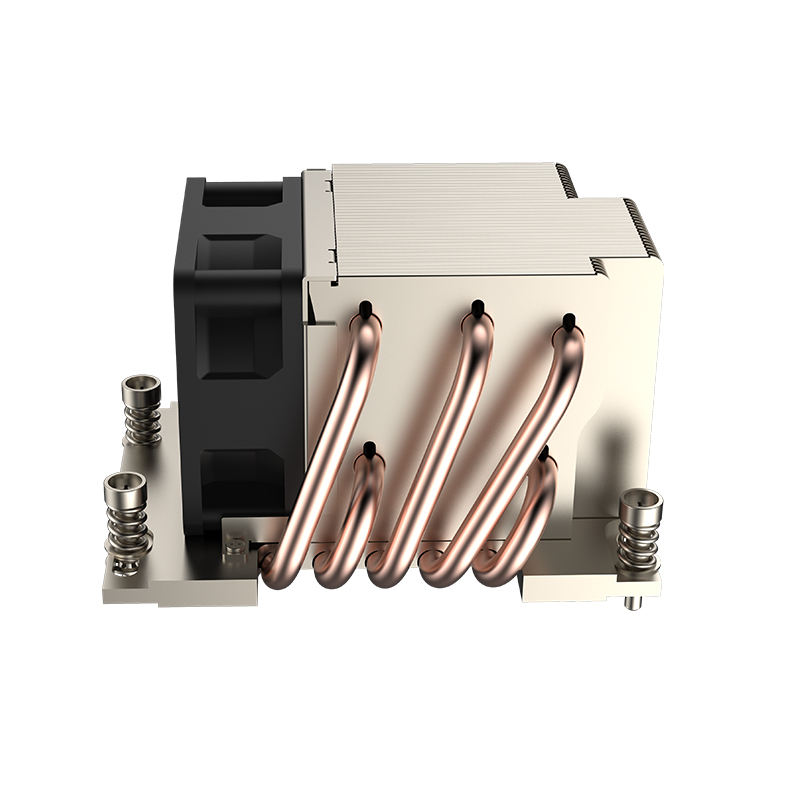

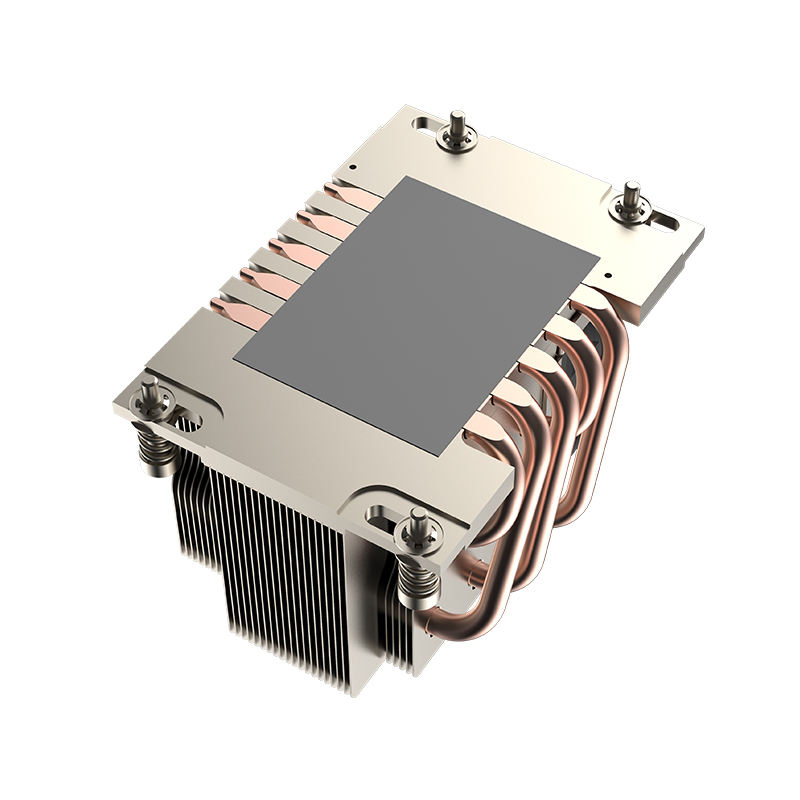

Support SP3 AMD 2UP23 Multi-platform CPU Cooler Radiator 5 Heat Pipe Copper Bottom 2U Server for Computer Case TDP 320W
CPU PlatformSP3
Power InterfacePWM
Noise52.5 dBA
Power (TDP)320 W
Air Volume47.2 CFM
Support SP3 AMD 2UP23 Multi-platform CPU Cooler Radiator 5 Heat Pipe Copper Bottom 2U Server for Computer Case TDP 320W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-AMD SP3-2UP23 |
| Short Description | Support SP3 AMD 2UP23 Multi-platform CPU Cooler Radiator 5 Heat Pipe Copper Bottom 2U Server for Computer Case TDP 320W |
| Description | Support SP3 AMD 2UP23 Multi-platform CPU Cooler Radiator 5 Heat Pipe Copper Bottom 2U Server for Computer Case TDP 320W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
| CPU Generation / Platform | AMD SP3 (rectangular motherboard) |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 115 × 78 × 66.3 mm |
| Weight | 0.487 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60X60X25MM |
| Fan Speed | PWM 2600-8000RPM |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Fan Life | 50000 Hrs hours |
