Made to order
CPU Cooling
SRV-AMD SP3-2UP22

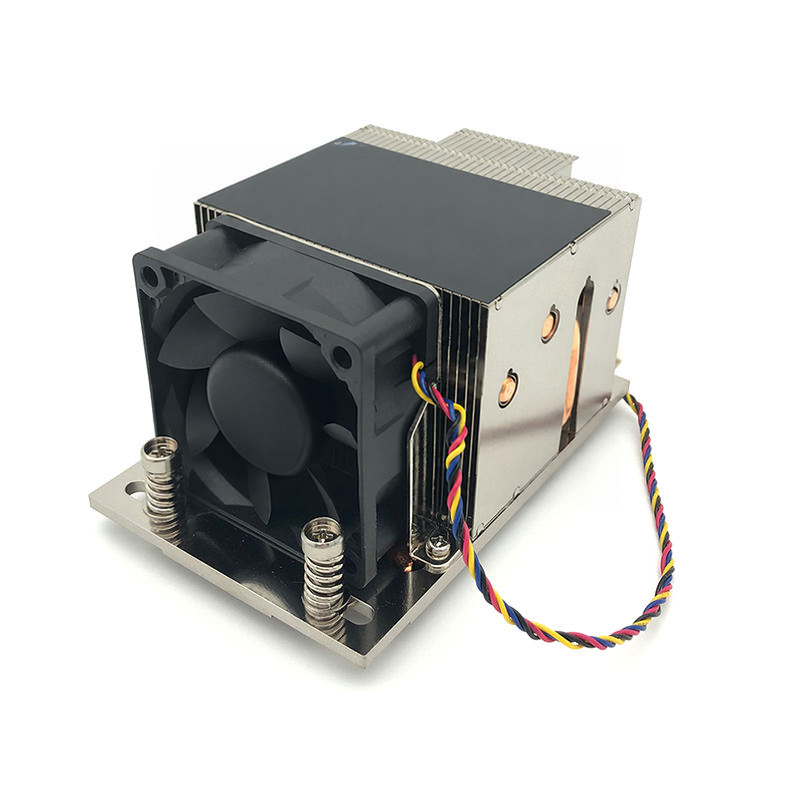

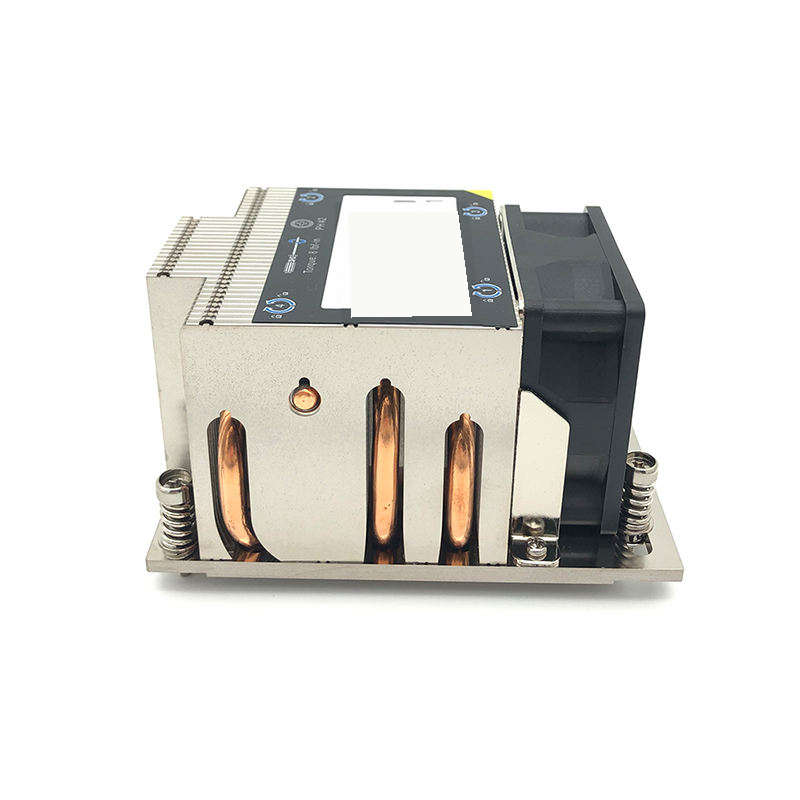

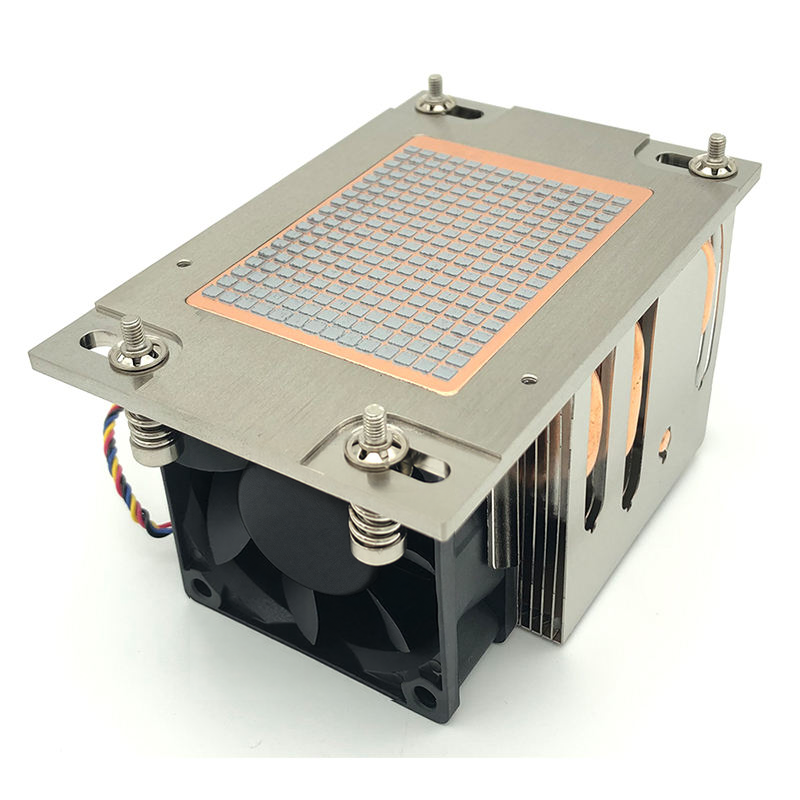

Support SP3 2UP22 AMD Multi-platform CPU Air Cooler Radiator 4 Heat Pipe Cooling Copper Bottom 2u Server Computer TDP 240W
CPU PlatformSP3
Noise52 dBA
Power (TDP)240 W
Air Volume34.5 CFM
Support SP3 2UP22 AMD Multi-platform CPU Air Cooler Radiator 4 Heat Pipe Cooling Copper Bottom 2u Server Computer TDP 240W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-AMD SP3-2UP22 |
| Short Description | Support SP3 2UP22 AMD Multi-platform CPU Air Cooler Radiator 4 Heat Pipe Cooling Copper Bottom 2u Server Computer TDP 240W |
| Description | Support SP3 2UP22 AMD Multi-platform CPU Air Cooler Radiator 4 Heat Pipe Cooling Copper Bottom 2u Server Computer TDP 240W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
Thermal and Mechanical
| Heat Pipe Count | 4 |
| Heatsink Material | Copper & Aluminum |
| Weight | 0.65 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60x60x25mm |
| Fan Speed | 6800rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Fan Life | 50000 Hrs hours |
