Made to order
CPU Cooling
SRV-AM5-4UR22

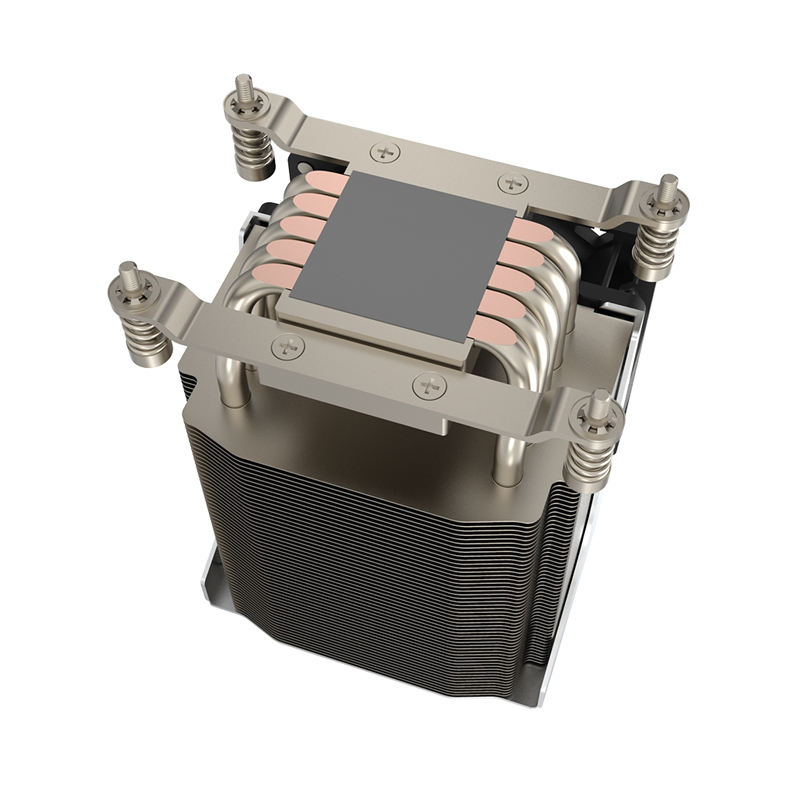

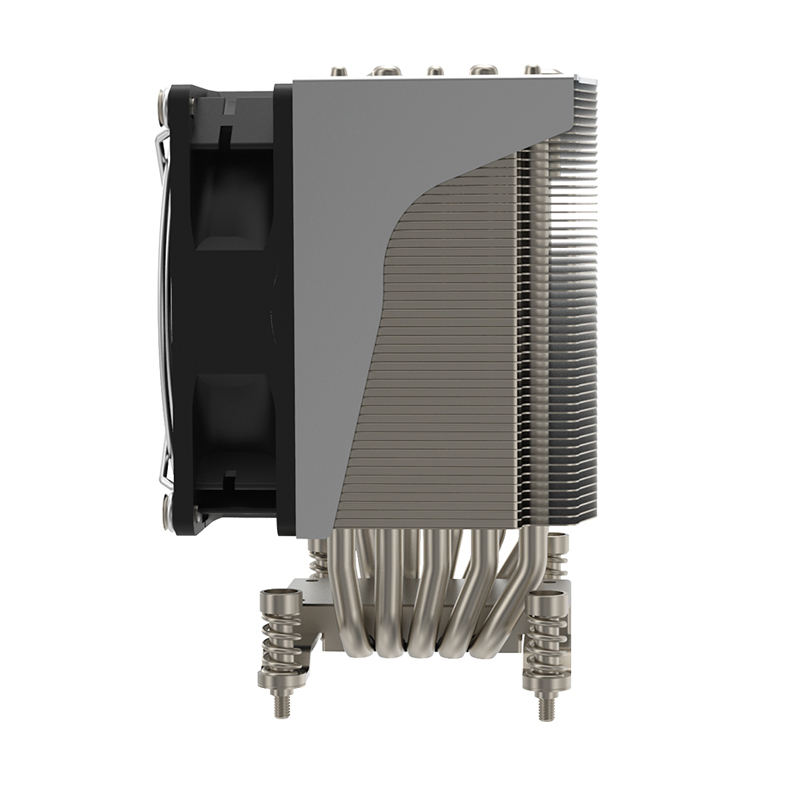

COOLSERVER CS-AM5-4UR22 5 Heat Pipe 180W Server Cooler CPU Cooling Heat Sink Supports for AM5 4U Computer Motherboard Fan Copper
CPU PlatformAM5
Power InterfacePWM
Noise44 dBA
Air Volume61.46 CFM
COOLSERVER CS-AM5-4UR22 5 Heat Pipe 180W Server Cooler CPU Cooling Heat Sink Supports for AM5 4U Computer Motherboard Fan Copper. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-AM5-4UR22 |
| Short Description | COOLSERVER CS-AM5-4UR22 5 Heat Pipe 180W Server Cooler CPU Cooling Heat Sink Supports for AM5 4U Computer Motherboard Fan Copper |
| Description | COOLSERVER CS-AM5-4UR22 5 Heat Pipe 180W Server Cooler CPU Cooling Heat Sink Supports for AM5 4U Computer Motherboard Fan Copper. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
| CPU Generation / Platform | AMD AM5 |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 98.8 × 100 × 124.8 mm |
| Weight | 0.26 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | Other mm |
| Fan Speed | 1900-3800RPM |
| Connector | 4pin PWM |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V DC |
| Fan Life | 100000 Hrs hours |
