Made to order
CPU Cooling
SRV-AM5-2UR67

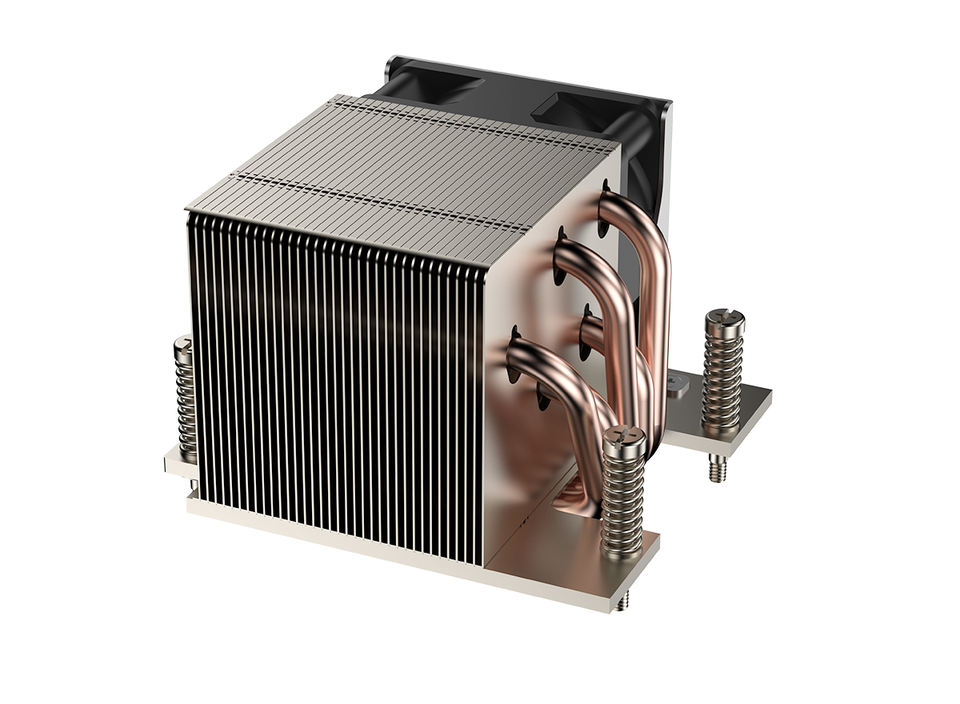

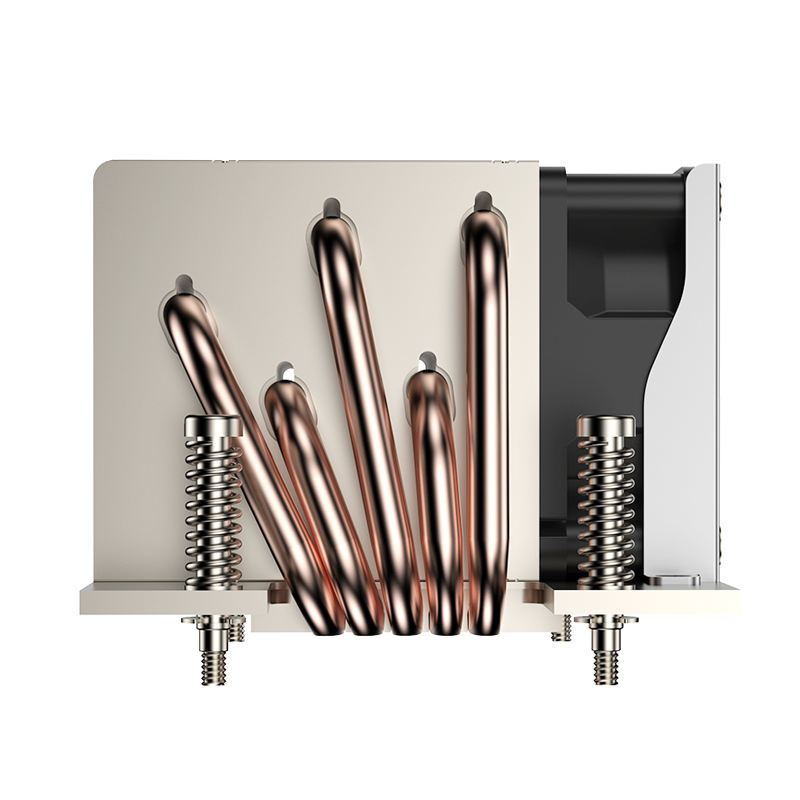

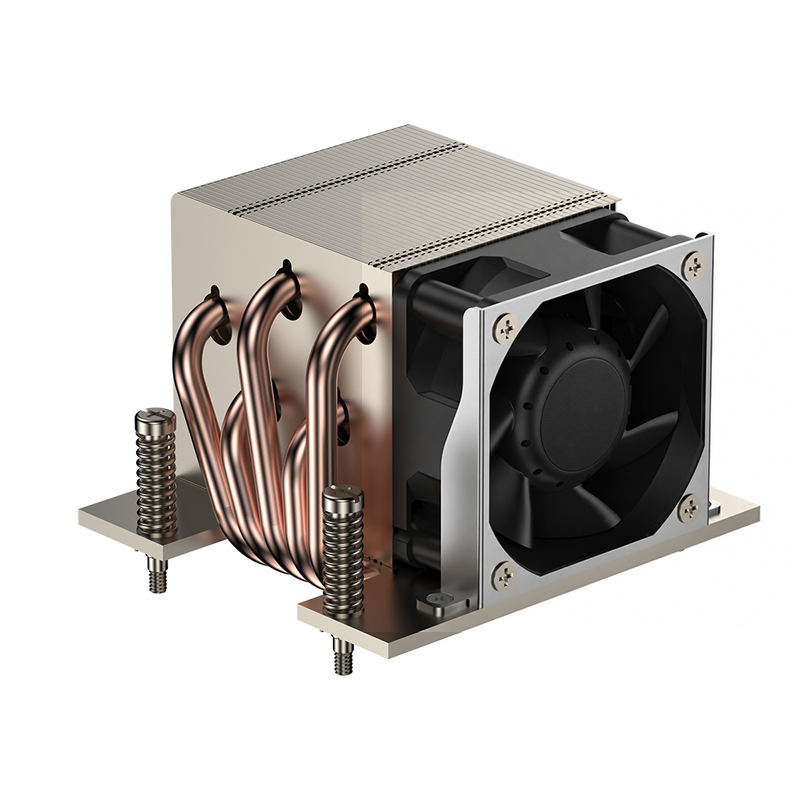

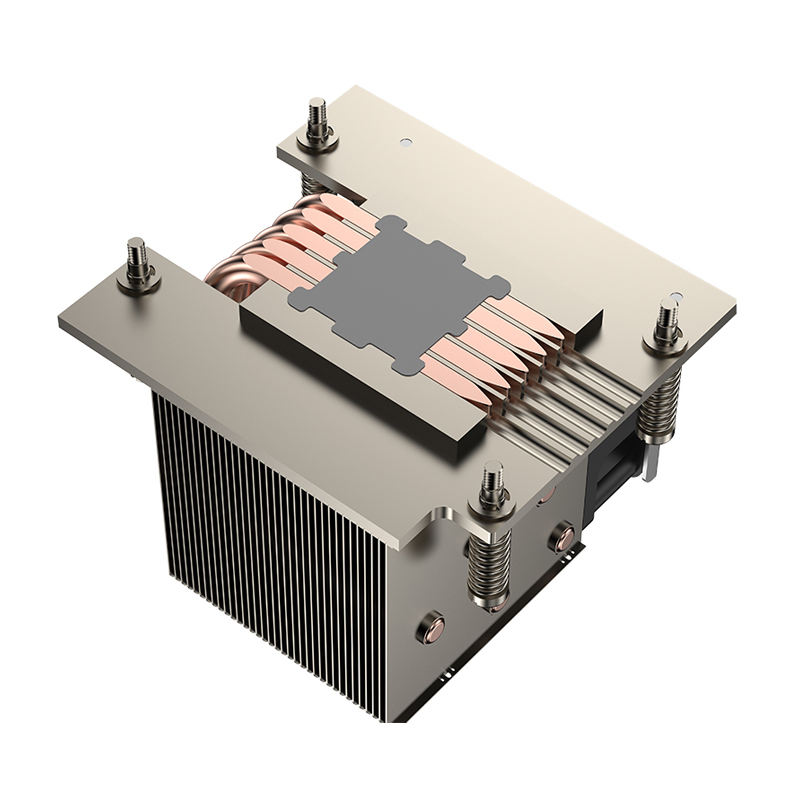

COOLSERVER CS-AM5-2UR67 CPU Cooler 5 Heat Pipes Heat Sink AM5 2U Computer Case Motherboard Copper Bottom TDP200W
CPU PlatformAM4, AM5
Power InterfacePWM
Noise58.5 dBA
Air Volume62 CFM
COOLSERVER CS-AM5-2UR67 CPU Cooler 5 Heat Pipes Heat Sink AM5 2U Computer Case Motherboard Copper Bottom TDP200W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-AM5-2UR67 |
| Short Description | COOLSERVER CS-AM5-2UR67 CPU Cooler 5 Heat Pipes Heat Sink AM5 2U Computer Case Motherboard Copper Bottom TDP200W |
| Description | COOLSERVER CS-AM5-2UR67 CPU Cooler 5 Heat Pipes Heat Sink AM5 2U Computer Case Motherboard Copper Bottom TDP200W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | AMD |
| CPU Generation / Platform | AMD AM4 AM5 |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 100 × 90 × 67.5 mm |
| Weight | 0.8 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60x60x25mm |
| Fan Speed | 3000-11000RPM |
| Connector | 4pin PWM |
| Bearing Type | TWO BALL BEARING |
| Fan Life | 100000 Hrs hours |
