Made to order
CPU Cooling
SRV-4677-2UM83

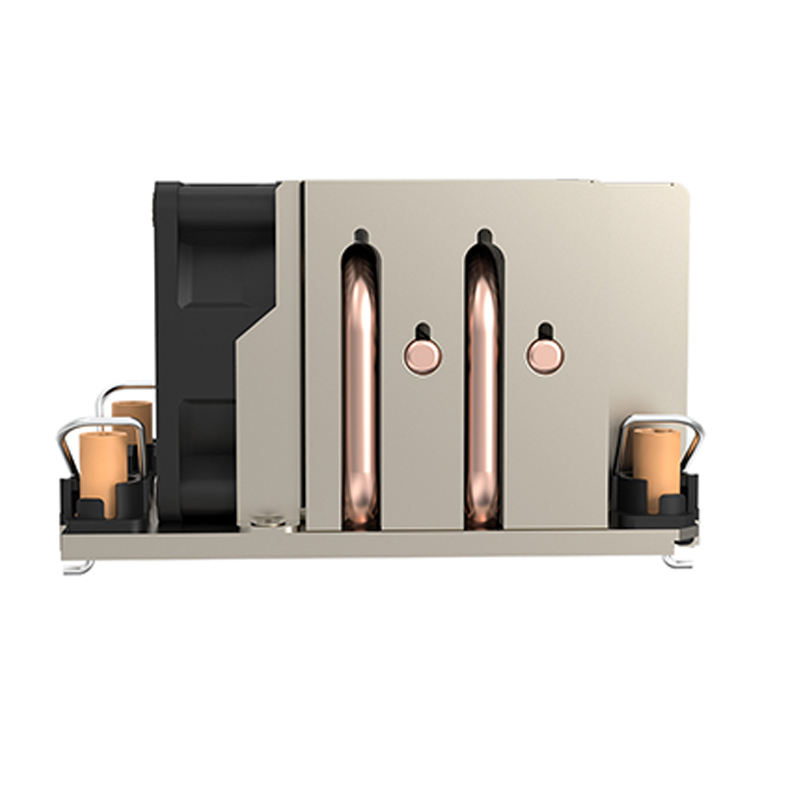

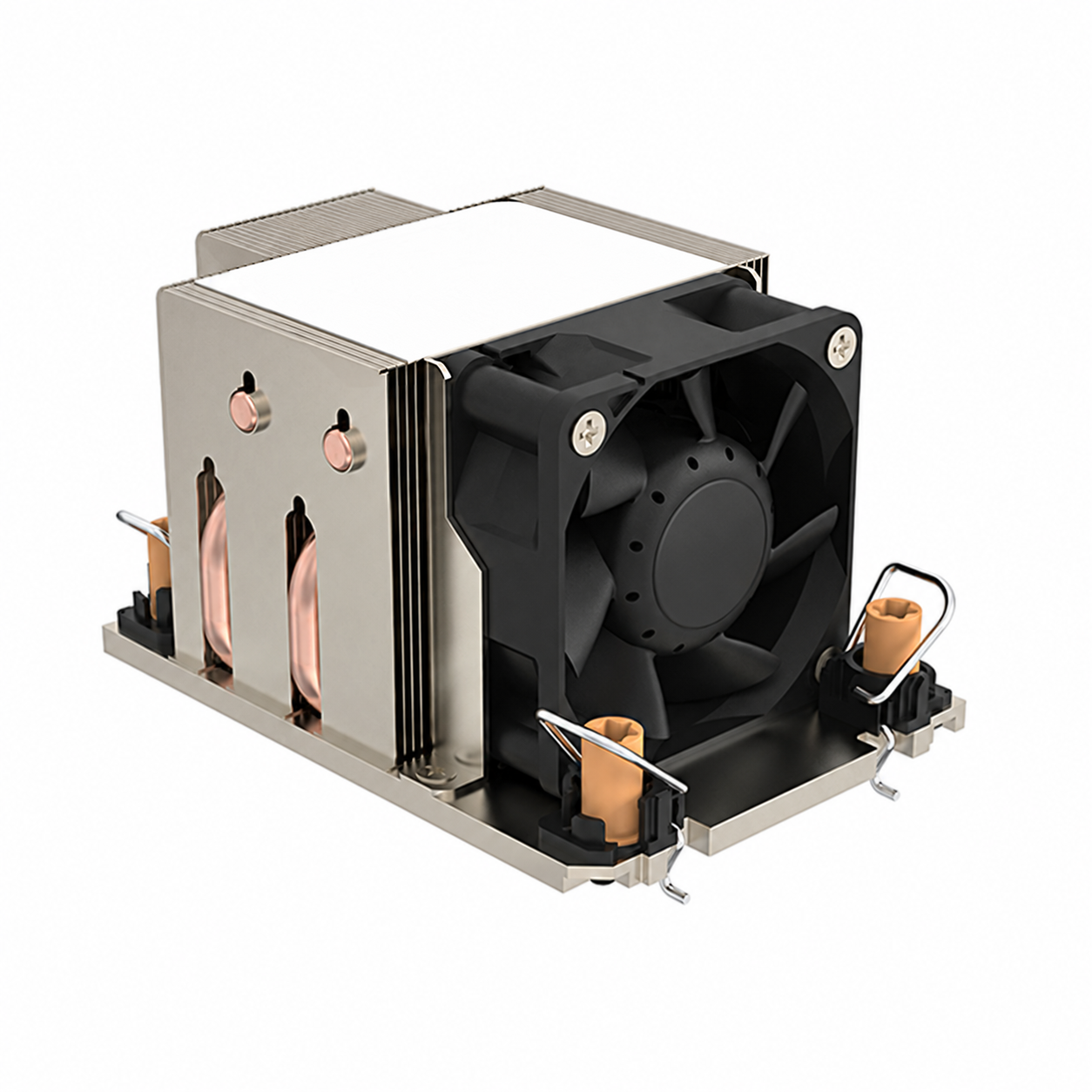

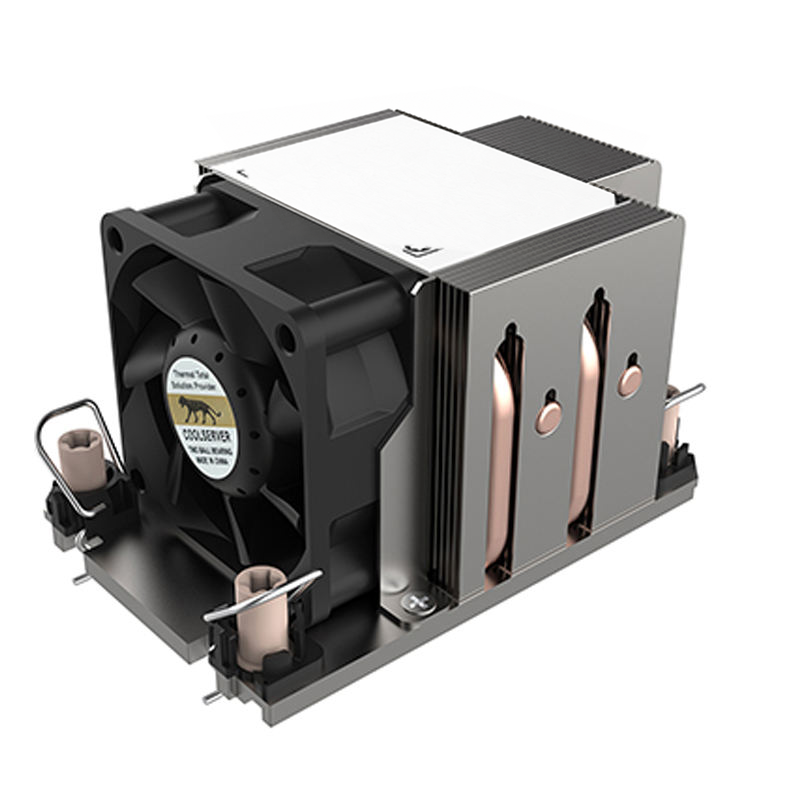

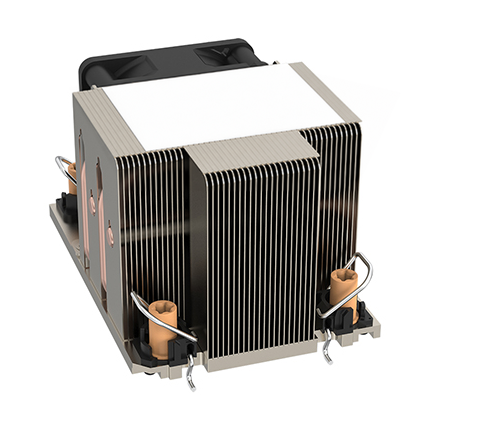

Coolserver LAG 4677 2UM83 5 Heat Pipe Server CPU Radiator 2U 4pin PWM Silent Customizable Computer Case TDP 285W Two Ball
CPU PlatformLGA4677
Noise54.34 dBA
Power (TDP)285 W
Air Volume34.74 CFM
Coolserver LAG 4677 2UM83 5 Heat Pipe Server CPU Radiator 2U 4pin PWM Silent Customizable Computer Case TDP 285W Two Ball. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-4677-2UM83 |
| Short Description | Coolserver LAG 4677 2UM83 5 Heat Pipe Server CPU Radiator 2U 4pin PWM Silent Customizable Computer Case TDP 285W Two Ball |
| Description | Coolserver LAG 4677 2UM83 5 Heat Pipe Server CPU Radiator 2U 4pin PWM Silent Customizable Computer Case TDP 285W Two Ball. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA 4677 Square Matherboard |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper & Aluminum |
| Weight | 1.214 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | Other mm |
| Fan Speed | 2100-8000RPM |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 100000 Hrs hours |
