Made to order
CPU Cooling
SRV-3647-2US82

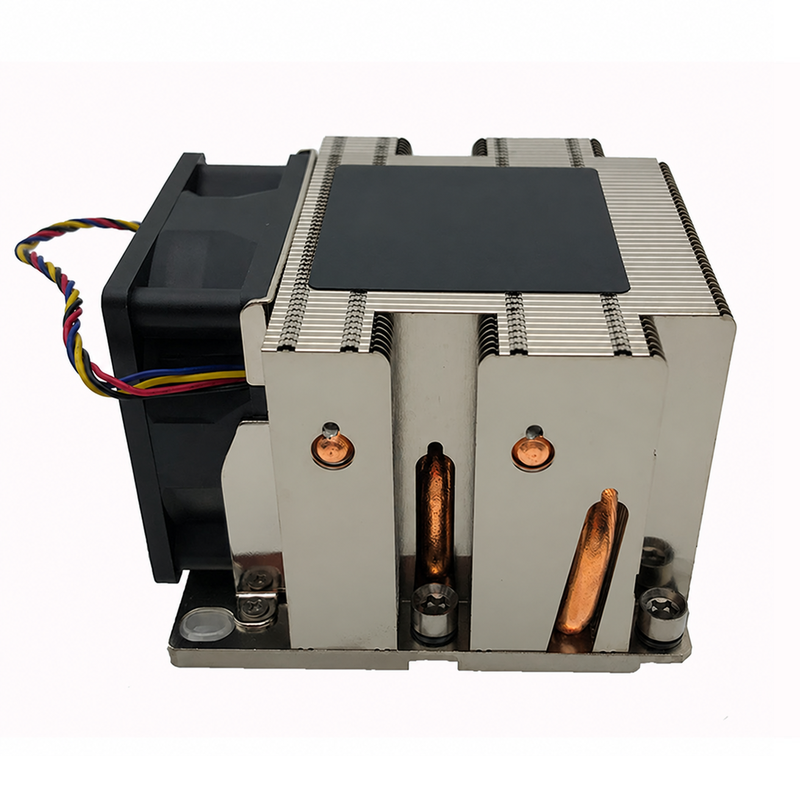

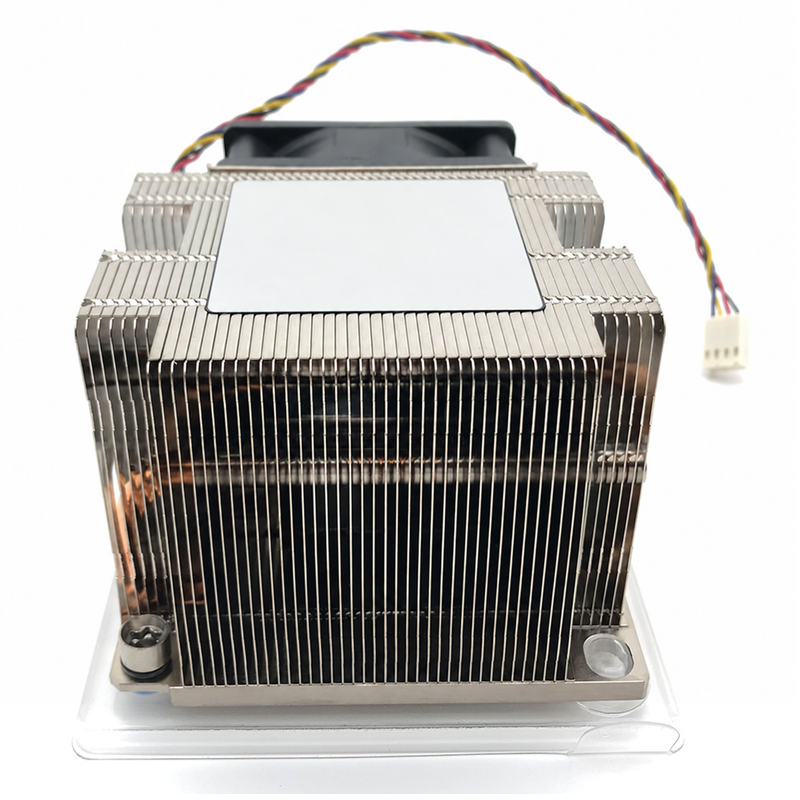

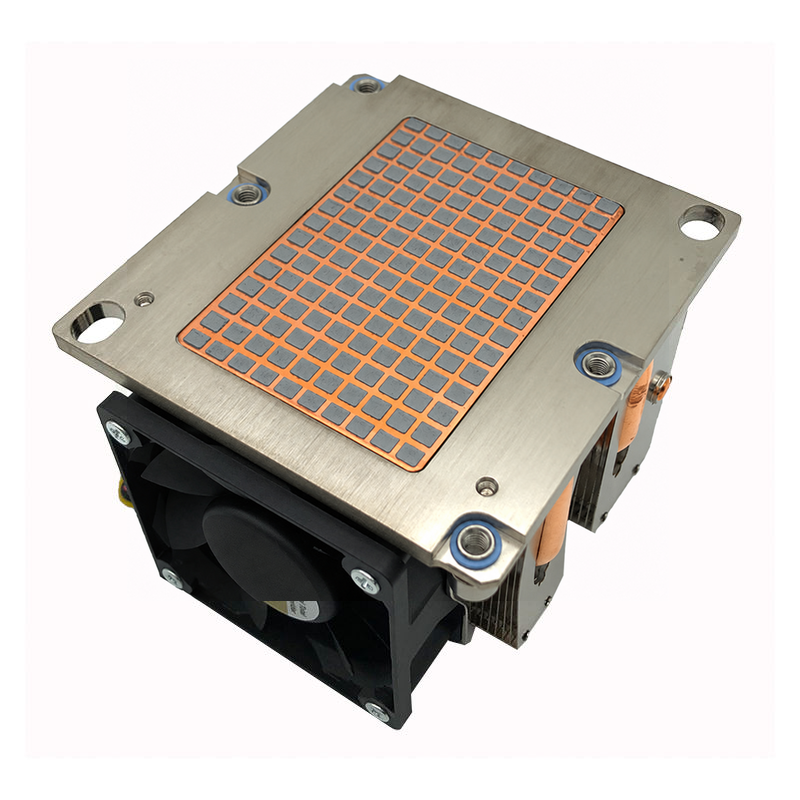

COOLSERVER 3647 Pure Copper Copper Bottom 4 Heat Pipe Computer CPU Radiator Side Blowing Temperature Control Fan 2U Server
CPU PlatformLGA3647
Noise52 dBA
Power (TDP)205 W
Air Volume34.5 CFM
COOLSERVER 3647 Pure Copper Copper Bottom 4 Heat Pipe Computer CPU Radiator Side Blowing Temperature Control Fan 2U Server. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-3647-2US82 |
| Short Description | COOLSERVER 3647 Pure Copper Copper Bottom 4 Heat Pipe Computer CPU Radiator Side Blowing Temperature Control Fan 2U Server |
| Description | COOLSERVER 3647 Pure Copper Copper Bottom 4 Heat Pipe Computer CPU Radiator Side Blowing Temperature Control Fan 2U Server. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA3647 (square motherboard) |
Thermal and Mechanical
| Heat Pipe Count | 4 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 91 × 88 × 64.5 mm |
| Weight | 0.502 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60X60X25MM |
| Fan Speed | 2100-6800RPM |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
