Made to order
CPU Cooling
SRV-3647-2UR83

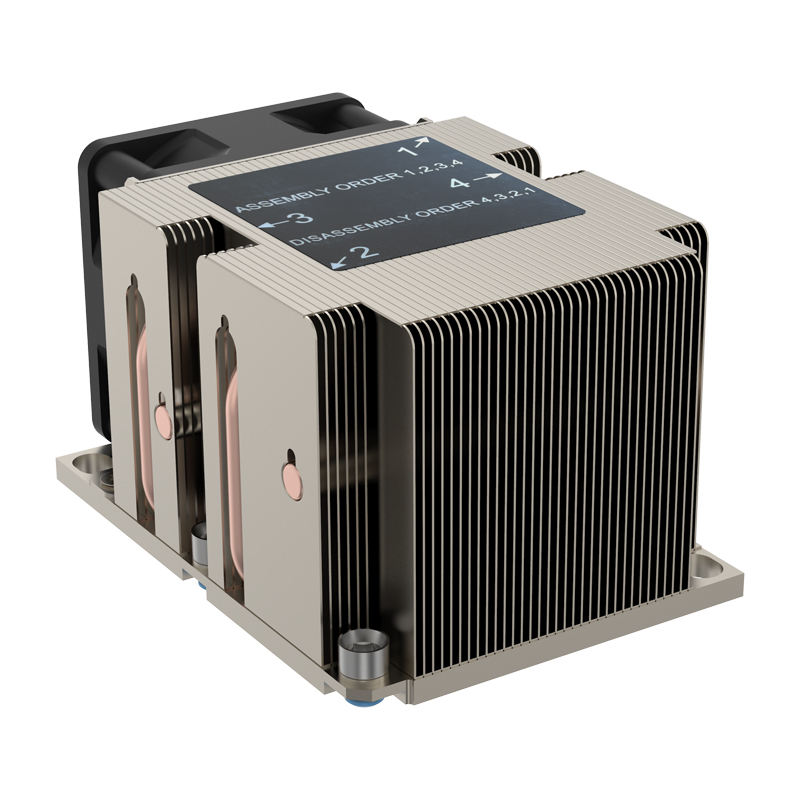

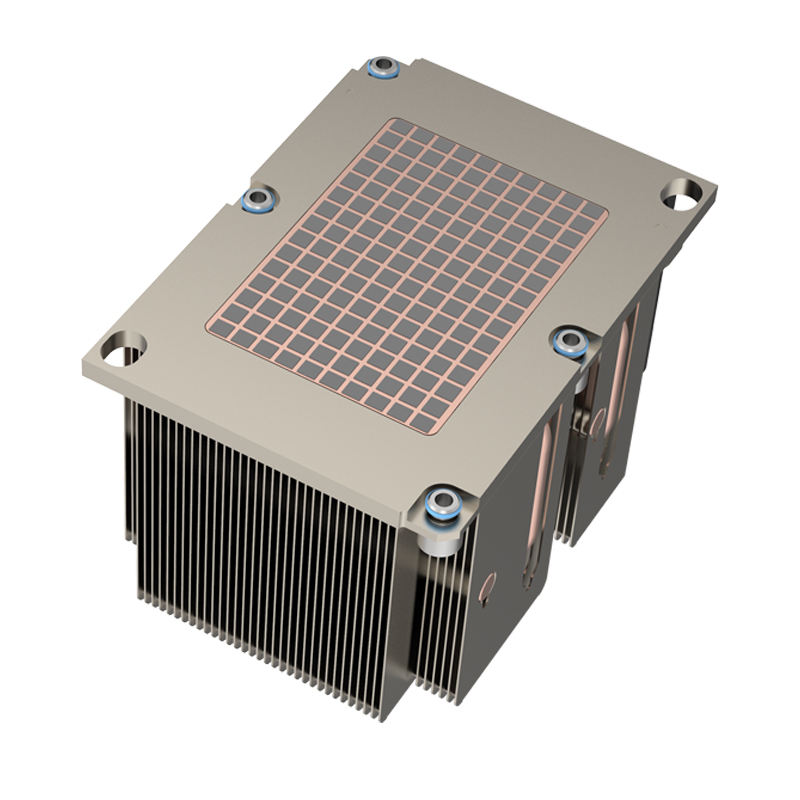

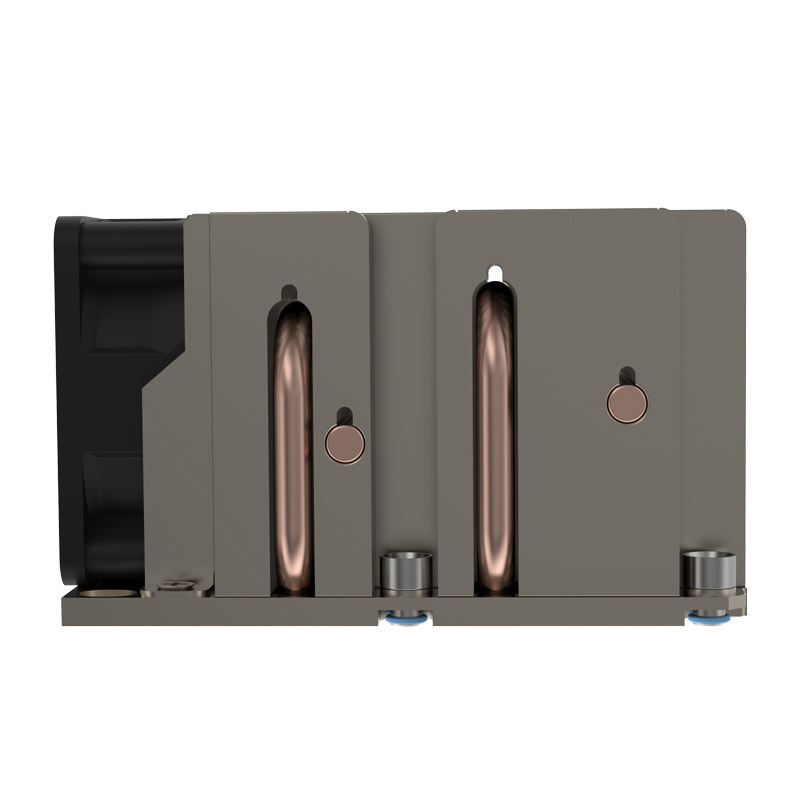

COOLSERVER Computer LGA 3647 Platform CPU Server Radiator 2u4 Heat Pipe Desktop Side Blowing Air Cooling Fan
CPU PlatformLGA3647
Noise52.5 dBA
Power (TDP)225 W
Air Volume47.2 CFM
COOLSERVER Computer LGA 3647 Platform CPU Server Radiator 2u4 Heat Pipe Desktop Side Blowing Air Cooling Fan. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-3647-2UR83 |
| Short Description | COOLSERVER Computer LGA 3647 Platform CPU Server Radiator 2u4 Heat Pipe Desktop Side Blowing Air Cooling Fan |
| Description | COOLSERVER Computer LGA 3647 Platform CPU Server Radiator 2u4 Heat Pipe Desktop Side Blowing Air Cooling Fan. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | lga3647 (rectangular motherboard) |
Thermal and Mechanical
| Heat Pipe Count | 4 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 108 × 78 × 64.5 mm |
| Weight | 0.502 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60x60x25mm |
| Fan Speed | 2600-8000rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
